The Complete Guide to Choosing a Thermal Scope: Why an Integrated Laser Rangefinder Changes Everything

Hunting, tracking, and property surveillance after dark come with a unique set of challenges. While standard night vision amplifies ambient light, thermal imaging detects heat signatures directly, letting you spot animals and intruders through pitch-black darkness, dense fog, brush, or rain.

However, experienced night hunters and outdoor professionals know the single biggest hurdle with thermal optics: depth perception.

Because thermal screens display a flat, 2D heat profile, estimating whether a coyote or hog is 150 yards away or 350 yards away is notoriously tricky. Misjudging distance leads to missed shots and wounded game. That is why modern thermal scopes equipped with integrated Laser Rangefinders (LRF) and onboard ballistic calculation have quickly become the gold standard in North America.

In this guide, we break down what specifications actually matter in a thermal scope, how to pick the right lens and resolution, and why optics like the XSTA-G Series provide the complete field package.

1. Thermal Core: Why 12µm and 60Hz Frame Rates Matter

At the heart of every thermal scope is its uncooled thermal detector. When reviewing specs, pay close attention to two numbers: pixel pitch and refresh rate.

• 12µm Pixel Pitch: Smaller micron ratings pack more sensor pixels onto the detector, providing crisper image detail, higher optical magnification, and better identification range at longer distances.
• 60Hz High Refresh Rate: Many budget scopes run at 30Hz or 50Hz, which can cause motion blur or stutter when tracking moving targets. A 60Hz sensor delivers real-time, fluid tracking whether you are sweeping a treeline or following a running hog.

Resolution tiers match different operational needs:

• 256×192: Budget-friendly entry point, ideal for close-to-mid range tracking and small property inspection up to 200–300 yards.
• 384×288: The versatile sweet spot for most predator and hog hunters, balancing sharp detail and long-range detection.
• 640×512: Premium flagship clarity, providing high-definition target identification out past 1,000 yards.

---

2. The Game Changer: Built-in Laser Rangefinder (LRF) + Smart Ballistics

Judging distances across open pastures or uneven ground at night is nearly impossible with the naked eye. In traditional setups, hunters had to carry a handheld thermal monocular plus an external rangefinder, fumbling with gear in the dark.

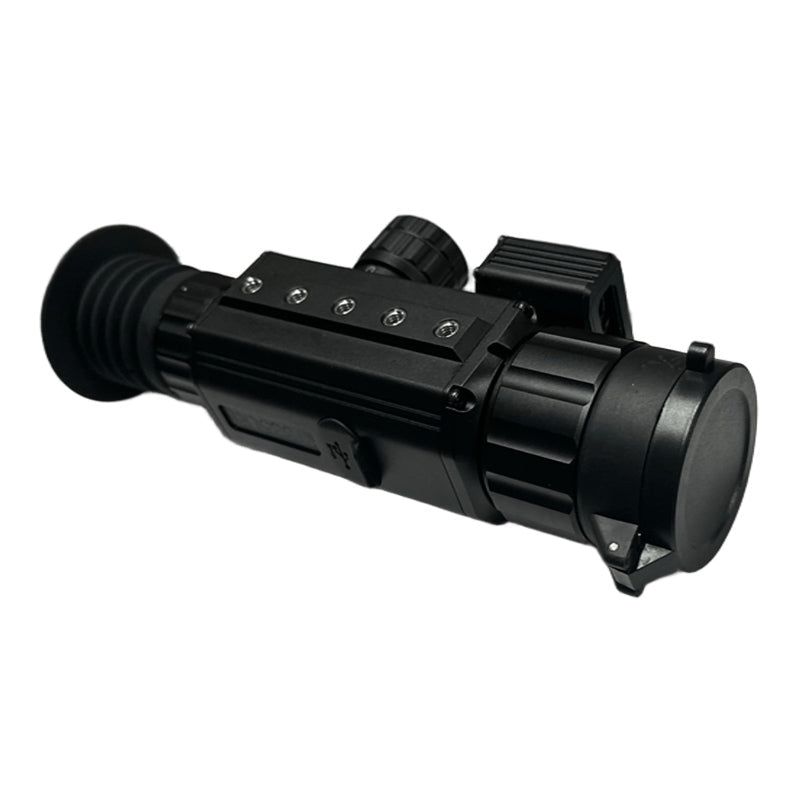

Optics like the XSTA-G Series Thermal Imaging Scope solve this by integrating a precision laser rangefinder directly into the scope housing.

• 1000m+ Measuring Range: Accurately measures target distance up to 1,000 meters with ±1m precision at the push of a button.
• Smart Ballistic Calculation: The onboard computer works with built-in pitch/roll angle sensors and an electronic compass to calculate bullet drop compensation in real time, projecting the exact point of impact on the 1024×768 HD OLED display.

This takes the guesswork out of holdover, ensuring ethical and clean shot placement every time.

---

3. Lens Selection: 35mm vs. 50mm Objective Lens

Your choice of objective lens determines your Field of View (FOV) and base optical magnification:

• 35mm Objective Lens (e.g., XSTA-G 35mm): Offers a wider field of view, making it the top choice for dense woods, mid-range scanning, and quick target acquisition in thick terrain.
• 50mm Objective Lens (e.g., XSTA-G 50mm): Delivers higher base magnification and maximum detection range, allowing target detection up to 3,000 meters for vehicles and 1,700 meters for human-sized targets across vast agricultural fields and rolling hills.

With 1x/2x/4x/8x digital zoom and Picture-in-Picture (PiP) mode, you can keep situational awareness of your surroundings while zooming in on your target's vitals.

---

4. Built for Harsh North American Field Conditions

A thermal scope is an investment, and field gear takes a beating. Look for these essential durability features:

• Replaceable 18650 Battery System: Sealed internal batteries leave you stranded if they die in sub-zero winter temperatures. The XSTA-G uses standard rechargeable 18650 batteries delivering up to 8 hours of continuous runtime, meaning you can carry a spare in your pocket and swap it in seconds.
• Recoil Shock Resistance (1000g/3ms): Rugged aluminum alloy construction engineered to withstand repeated heavy recoil and standard Picatinny rail mounting.
• IP66 All-Weather Rating: Fully sealed against heavy downpours, sleet, blowing dust, and temperatures ranging from -20°C to +50°C (-4°F to 122°F).
• Wi-Fi App Streaming & Recording: Connect to your mobile device via 2.4GHz Wi-Fi to livestream the feed, capture footage of your hunt, or review shots with partners.

---

5. Popular Color Palettes & When to Use Them

The XSTA-G features 5 dedicated imaging palettes to match ambient conditions:

1. White Hot: The classic, intuitive mode for general scanning and quick detection.
2. Black Hot: Best for recognizing animal contours and anatomical details.
3. Red Hot: Highlights the hottest zones in vibrant red, making small critters pop against cold brush.
4. Green Hot: Easy on the eyes during prolonged night watches, reducing eye fatigue.
5. Fusion: Multi-color heat gradient ideal for detailed wildlife observation and search-and-rescue.

Ready to upgrade your night setup? Explore the full specifications and available configurations of the XSTA-G Thermal Imaging Scope (640x512 / 384x288 / 256x192) on our store today.
