HDMI Encoder vs Capture Card: What’s the Difference?

If you want to connect a camera, game console, or other HDMI source to a streaming setup, you may be comparing an HDMI encoder and a capture card.

Although both devices can receive HDMI video, they are designed for different workflows. A capture card usually sends video to a computer, while an HDMI encoder converts video into a network stream that can be sent directly to streaming platforms, media servers, or other IP video systems.

Understanding the difference can help you choose the right solution for live streaming, broadcasting, IPTV, surveillance, and professional video production.

What Is an HDMI Capture Card?

An HDMI capture card receives video from an HDMI source and transfers it to a computer.

A typical setup looks like this:

Camera or console → HDMI capture card → Computer → Streaming software

The capture card is commonly connected through USB, PCIe, or another computer interface. Once connected, the computer recognizes the video source, and software such as OBS Studio or other production applications can use the incoming video.

Common uses for a capture card

Capture cards are often used for:

• Game streaming
• Recording camera footage
• Video conferences
• Online teaching
• Podcast production
• Live production with OBS or similar software
• Adding HDMI cameras to a desktop workflow

The main advantage of a capture card is flexibility. The computer can combine video sources, add graphics, mix audio, and control the final broadcast.

The main limitation is that the computer remains an important part of the workflow. The computer must be powerful enough to receive, process, and stream the video.

What Is an HDMI Encoder?

An HDMI encoder converts HDMI video into a digital IP stream.

A typical setup looks like this:

Camera or HDMI source → HDMI encoder → Ethernet network → Streaming platform or media server

Depending on the encoder and configuration, the output may use protocols such as RTMP, RTSP, WebRTC, or other IP video formats.

Instead of sending the video directly to a computer as a camera source, the encoder prepares the video for transmission over a network.

Common uses for an HDMI encoder

HDMI encoders are often used for:

• Live streaming
• IPTV
• Remote video production
• Broadcast contribution
• Digital signage
• Video distribution
• IP-based monitoring
• Streaming HDMI sources to a media server

An encoder can be useful when you want to place the video source away from the main computer or when you want to build a more dedicated IP video workflow.

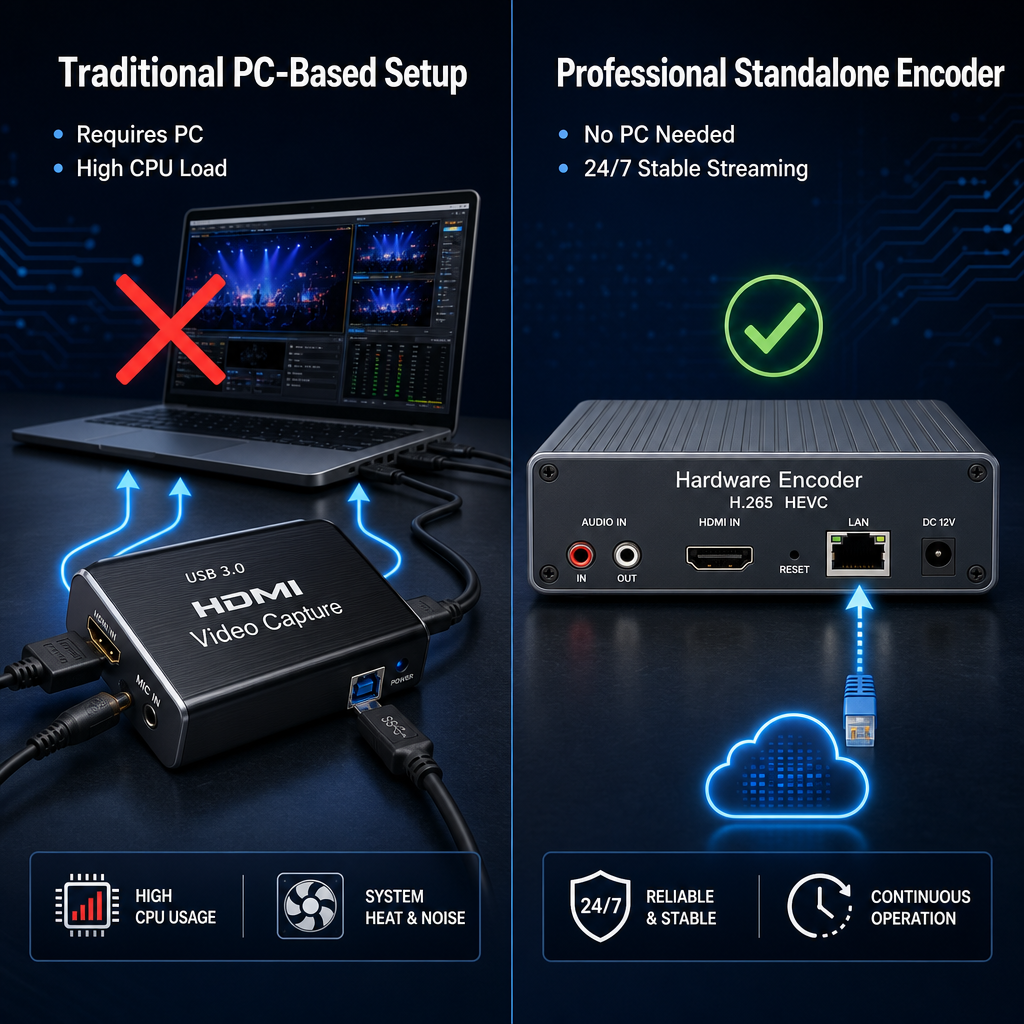

HDMI Encoder vs Capture Card: Key Differences

Which One Should You Choose?

The right choice depends on how you plan to use the video.

Choose a capture card if:

• You already use a computer for streaming
• You want to use OBS or similar software
• You need overlays, transitions, and real-time video production
• You want to combine several sources inside one computer
• You need a simple setup for gaming or content creation

A capture card is usually the better choice for creators who want the computer to control the entire production process.

Choose an HDMI encoder if:

• You want to send HDMI video over an IP network
• You need RTMP, RTSP, or WebRTC workflows
• Your camera or HDMI source is located away from the computer
• You are building an IPTV or broadcast system
• You want to connect directly to a media server or streaming platform
• You need a dedicated device for continuous video transmission

An HDMI encoder is often a better fit for professional and network-based video applications.

Can You Use Both Devices Together?

Yes. In some workflows, an HDMI encoder and capture card can be used for different purposes.

For example, an HDMI source could be connected to an encoder for network streaming while another output is connected to a capture card for local production or recording.

This type of setup can be useful when one video source needs to serve multiple destinations, such as a local production computer and a remote streaming platform.

HDMI Encoder or Capture Card for 4K Video?

For 4K workflows, check the complete specifications of the device, including:

• Maximum HDMI input resolution
• Maximum frame rate
• Encoding format
• Network output protocols
• Bitrate range
• Audio support
• Loop-through capability
• Recording or storage features
• Compatibility with your streaming platform

A computer-based capture workflow may require significant processing power, especially when working with high-resolution video. A dedicated encoder can reduce the amount of video processing handled by the computer, depending on the system design.

Conclusion

The key difference is simple:

• A capture card sends HDMI video to a computer.
• A HDMI encoder converts HDMI video into a network stream.

Choose a capture card when you need computer-based production with software such as OBS. Choose an HDMI encoder when you need to distribute HDMI video through an IP network using protocols such as RTMP, RTSP, or WebRTC.
