4K@30 Ultra-HD Embedded HDMI Video Encoder Board with 4G

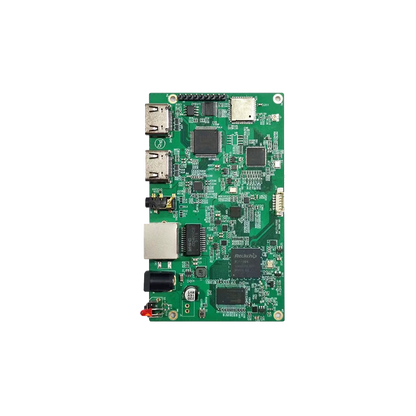

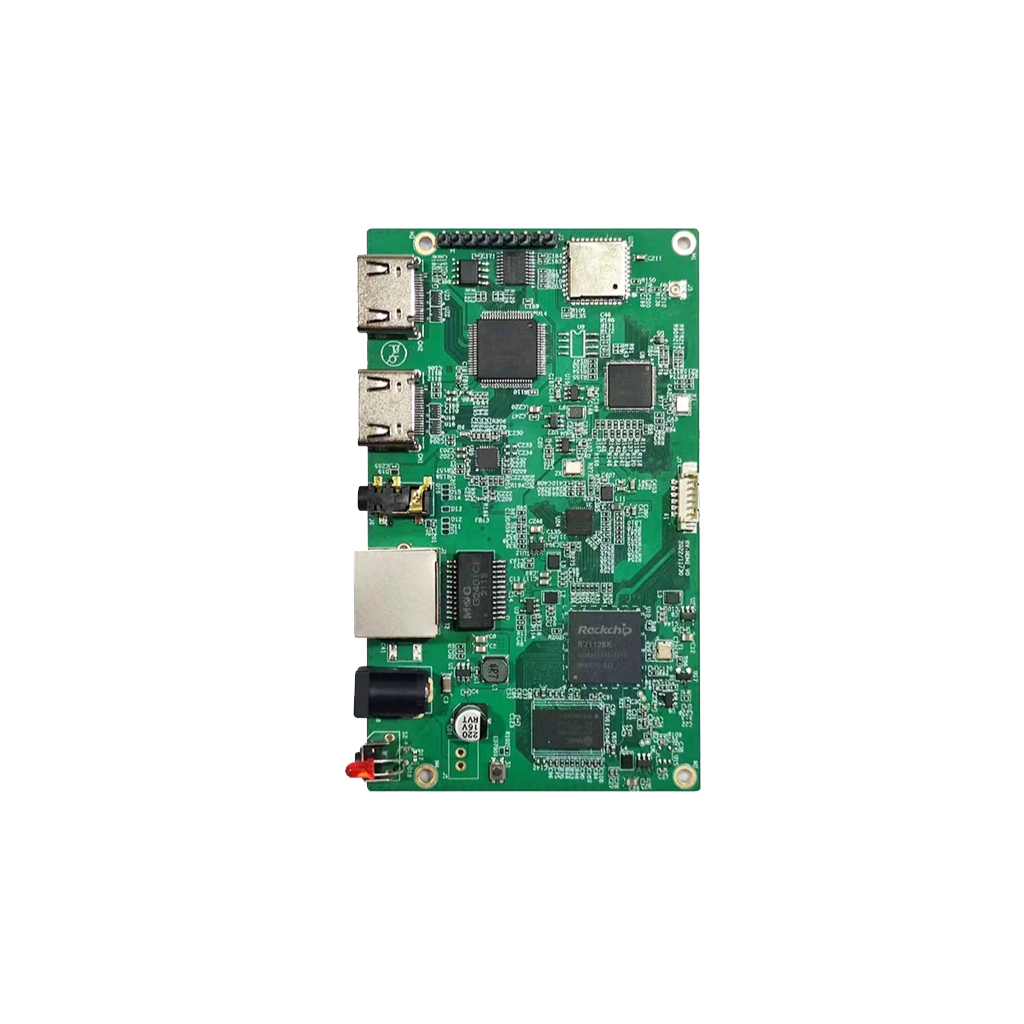

The XSWEDR-RV-SLHDMI is a high-performance, industrial-grade 4K embedded HDMI encoding module designed for OEM/ODM developers, robotics integration, medical imaging, and mobile broadcasting. Built with 100% domestic Chinese components, this board offers maximum supply-chain reliability, security, and exceptional performance under harsh operating environments.
Supporting video resolutions up to 4K@30fps (3840x2160) and 1080P@60fps, the module features a physical HDMI input alongside a 4K@30fps HDMI passthrough/loop-out interface for zero-latency local monitoring. To overcome networking challenges in the field, it is equipped with a 10/100/1000M adaptive Gigabit Ethernet port and supports 4G mobile network connectivity, enabling seamless 4K live streaming anytime, anywhere.
Engineered to withstand extreme environments, the board operates smoothly across a wide temperature range from -40°C to +75°C. With support for SRT, WebRTC, ONVIF, GB28181, TF card local recording/playback, and cloud-based management, it is the ultimate embedded gateway for next-generation 4K Pro AV applications.
Key Features & Highlights
- 4K Ultra-HD Resolution & 4K Loop-out: Handles up to 3840x2160@30fps and 1920x1080P@60fps input and encoding, complete with a 4K@30fps HDMI passthrough loop-out port for live preview.
- 100% Domestic Component Architecture: Built entirely with domestic components, ensuring full supply-chain independence and security for government and industrial projects.
- Gigabit Ethernet & 4G Connectivity: Integrated 10/100/1000M adaptive Ethernet port and built-in support for 4G mobile networks for flexible field deployment.
- Extreme Operating Temperature (-40°C to +75°C): True industrial-grade durability engineered to perform reliably in extreme cold or scorching outdoor conditions.
- Comprehensive Protocol Suite with SRT & WebRTC: Supports low-latency live streaming via SRT, WebRTC, RTMPS, RTMP, RTSP, UDP-TS, HLS, WS-FLV, ONVIF, and GB28181.
- Flex Audio Inputs & TF Card Storage: Supports both 3.5mm analog stereo audio and embedded HDMI audio, alongside TF card local recording and remote video playback.
- Ultra-Wide Bitrate Control: Fine-tune H.264/H.265 encoding from 35Kbps up to 30Mbps for maximum bandwidth efficiency.
- Cloud Centralized Remote Management: Modify settings, upgrade firmware, and review recordings remotely via the cloud control center (platform.xstrive.com).
Ideal Embedded & OEM Applications
- 4K Drone & Mobile Robotics Imaging: Embedded into inspection drones, autonomous rovers, and robotic crawlers for ultra-low latency 4K SRT video transmission over 4G/Gigabit networks.
- 4K Medical & Tele-Surgery Systems: Integrated into surgical cameras, diagnostic endoscopes, and medical displays requiring ultra-high resolution and low latency.
- Outdoor & Mobile Live Broadcasting: Compact 60g board for portable 4K field encoding, emergency response vehicles, and pop-up live events.
- Industrial & Defense Electronics: Heavy-duty embedded solution engineered for extreme temperature outdoor cabinets, power grid inspection, and smart city infrastructure.
Product Parameters:
| Model | XSWEDR-RV-SLHDMI |
| Component Standard | 100% Domestic Chinese Components |

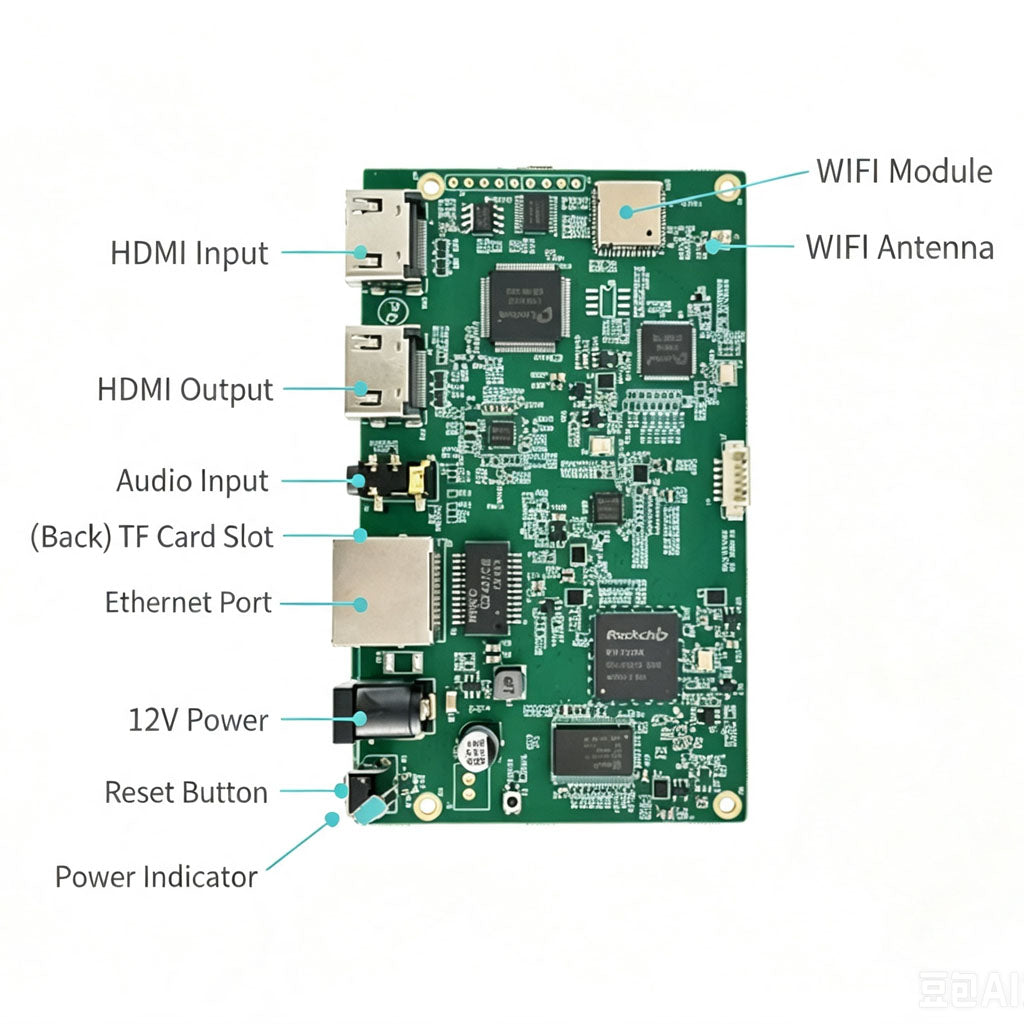

| Video Input | 1x HDMI Input (Up to 4K@30fps) |
| Video Output / Passthrough | 1x HDMI Loop-out Output (Up to 4K@30fps) |
| Audio Input | 1x 3.5mm Stereo Analog Audio Input / HDMI Embedded Audio |
| Video Encoding Capability | 3840x2160@30fps / 1920x1080P@60fps |
| Video / Audio Codecs | Video: H.264 / H.265 | Audio: AAC |
| Video Encoding Bitrate | 35 Kbps ~ 30 Mbps |
| Network Support | 10/100/1000M Adaptive Gigabit Ethernet, 4G Mobile Network |
| Streaming Protocols | SRT / RTSP / RTMP / RTMPS / UDP-TS / HLS / WS-FLV / WS-RAW / WEBRTC / GB28181 / ONVIF |
| Storage & Playback | TF Card Storage & Remote Playback Supported |
| Remote Management | Remote Configuration & Upgrade via platform.xstrive.com |
| Operating Power Supply | DC 12V |
| Operating Temperature | -40°C ~ +75°C (Industrial Grade) |
| Dimensions & Weight | 110 x 65 mm | Weight: 60g (2.12 oz) |
Package Contents
- 1x XSWEDR-RV-SLHDMI 4K Embedded HDMI Encoder Board
- 1x Power Connection Cable
- 1x Pinout & Setup Guide Document
