High-Density 16-Channel 1U Rackmount Video Streamer & IPTV Encoder

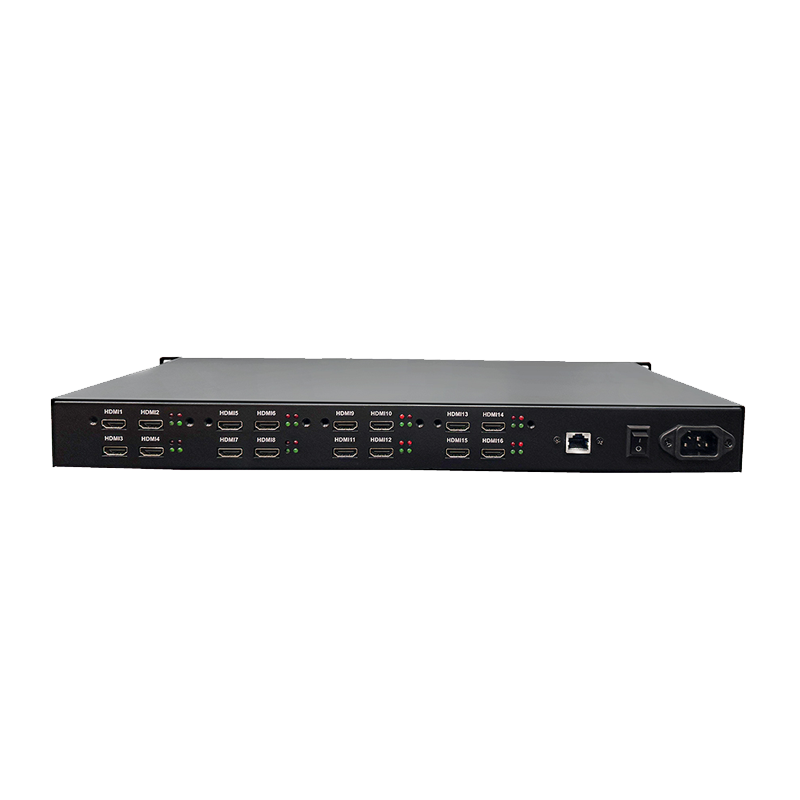

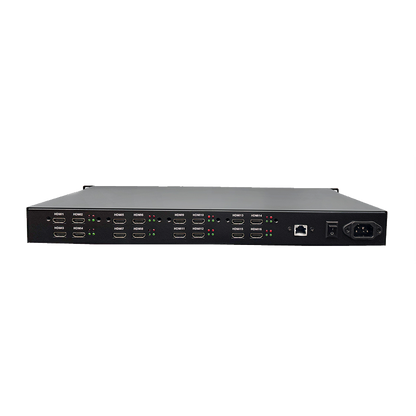

The XSW-HDMI16P480 is a professional-grade, high-density 16-channel HDMI video encoder designed for broadcast-quality IPTV headend systems, control rooms, and multi-channel live streaming deployments. Housed in a standard 1U 19-inch rackmount chassis, it efficiently converts up to 16 HDMI audio/video sources into IP streams, significantly saving cabinet space and reducing hardware deployment costs.
Equipped with robust dual-mode encoding capabilities, the XSW-HDMI16P480 supports simultaneous encoding of 16 channels at 1080P@30fps or 8 channels at high-frame-rate 1080P@60fps. With advanced H.265/H.264 video compression and an ultra-wide bitrate range (35Kbps to 32Mbps), it ensures crisp video quality while optimizing network bandwidth.
Key Features & Highlights
- 16 HDMI Inputs in 1U Space: Premium space-saving design with 16-channel HDMI inputs and embedded AAC audio encoding.
- Flexible Encoding Performance: Supports 16x 1080P@30fps or 8x 1080P@60fps workflows to meet diverse streaming and broadcasting demands.
- Ultra-Comprehensive Protocol Suite: Native support for SRT, RTMP, RTMPS, RTSP, UDP-TS, HLS, WS-FLV, WS-RAW, WebRTC, GB28181 Client, and ONVIF.
- H.265 / H.264 High-Efficiency Compression: Cuts bandwidth and storage requirements by up to 50% without sacrificing picture fidelity.
- Ultra-Wide Bitrate Control: Fully adjustable bitrate from 35Kbps up to 32Mbit for low-bandwidth cellular or high-bitrate LAN environments.
- Management & Remote Upgrade: Manage everything remotely via a simple web dashboard
- Industrial-Grade Reliability: AC 100-240V full-range power supply, heavy-duty metal enclosure, and 0–70°C wide operating temperature range for continuous 24/7 operation.
Comprehensive Protocol & Integration Support
Designed for seamless integration across diverse IT and AV ecosystems, the XSW-HDMI16P480 acts as a versatile bridge between traditional HDMI devices and modern IP networks:
- Low-Latency Delivery: SRT and WebRTC protocols enable sub-second latency for live news, interactive broadcasting, and remote production.

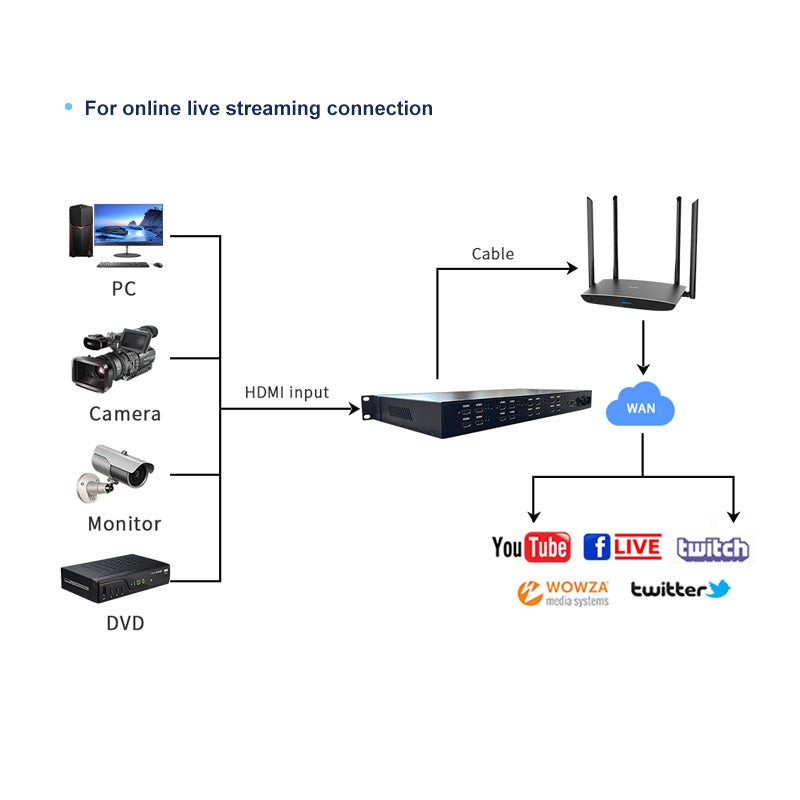

- Social Streaming: RTMP/RTMPS support lets you stream to YouTube Live, Facebook Live, Twitch, and custom CDN endpoints.
- Security & Surveillance: ONVIF and GB28181 compatibility allow seamless connection to NVRs, VMS, and security monitoring centers.
- IPTV & Digital Signage: UDP-TS, RTSP, and HLS protocols make it ideal for hotel IPTV networks, campus channels, and digital signage hubs.
Technical Specifications
| Model | XSW-HDMI16P480 |

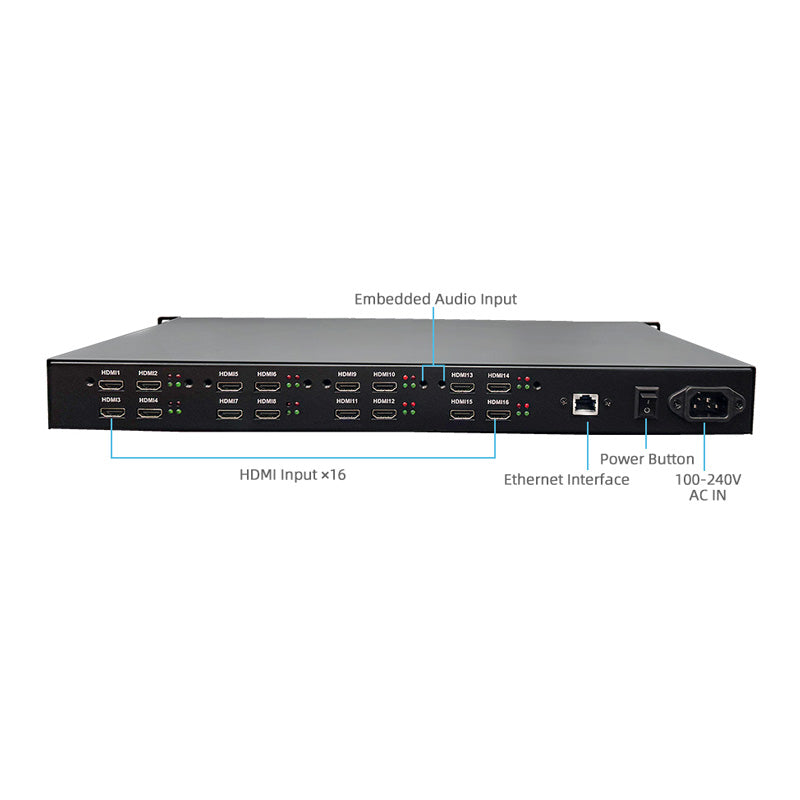

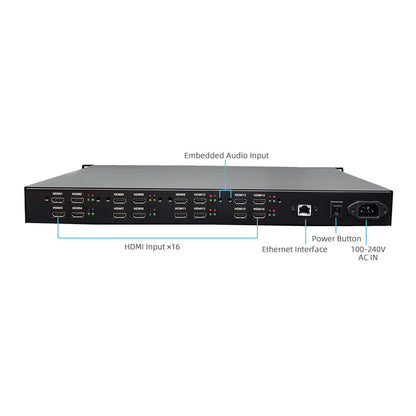

| Video Inputs | 16x HDMI (Type-A) |
| Audio Inputs | 16x HDMI Embedded Audio |
| Encoding Performance | 1920x1080@30fps x 16 Channels OR 1920x1080@60fps x 8 Channels |
| Video Codec | H.264 / H.265 |
| Audio Codec | AAC Encoding |
| Video Bitrate | 35 Kbps ~ 32 Mbps (Adjustable) |
| Ethernet Interface | 1x Gigabit Ethernet (1000Base-T, RJ45) |
| Streaming Protocols | SRT / RTSP / RTMP / RTMPS / UDP-TS / HLS / WS-FLV / WS-RAW / WEBRTC / GB28181 Client / ONVIF |
| Remote Management | Web GUI & Cloud Management (platform.xstrive.com); Remote Upgrades Supported |
| Power Supply | AC 100 - 240V, 50/60Hz |

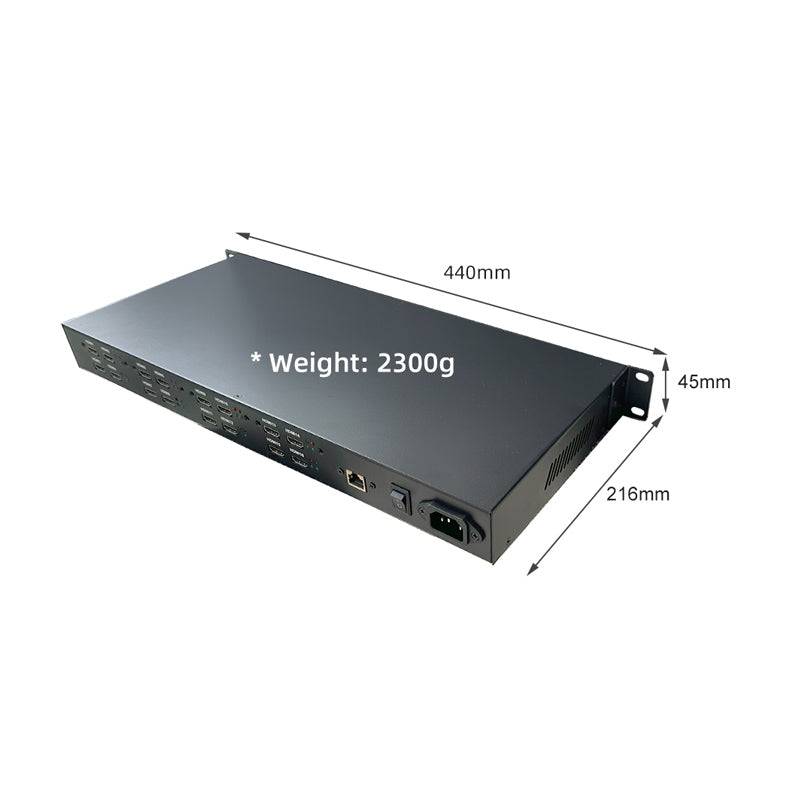

| Form Factor | 1U Rackmount Chassis (440 x 216 x 45 mm) |
| Operating Temperature | 0°C ~ 70°C |
| Net Weight | 2300g (5.07 lbs) |
Package Contents
- 1x XSW-HDMI16P480 16-Channel HDMI Encoder Board in 1U Chassis
- 1x AC Power Cable
- 1x Set of Rackmount Brackets & Screws
- 1x Quick Start Guide
FAQs
Does the product with a warranty?
Yes, absolutely. We stand behind our product quality. Every purchase comes with a 1-Year Risk-Free Warranty and lifetime technical support. If the hardware malfunctions due to non-human factors within 1 year, we will provide a replacement or free repair.
Where do you ship from and how long is the delivery time?
Shipped directly from our factory in Wuhan. We partner with top-tier carriers (USPS, FedEx, and UPS) to ensure your asset-protection gear arrives safely. Orders are processed within 1-2 business days. Shipping to the United States usually takes 5-9 business days, with end-to-end tracking provided via email.
Will I be charged import duties or hidden fees at checkout?
No. The price you see at checkout is final. all customs duties and import taxes are pre-paid by us. There are absolutely no hidden fees upon delivery.
