Ingenic A1 UHD 4K@90fps Decoder Board 1.4T AI Dual Gigabit Dual SATA for NVR IoT
Ingenic A1 UHD 4K@90fps Decoder Board 1.4T AI Dual Gigabit Dual SATA for NVR IoT
Couldn't load pickup availability
Key Highlights
- Unmatched 4K@90fps Decoding: Experience smooth, high-frame-rate Ultra HD video processing. Supports native 4K display output and resolutions up to 4096*4096 for professional broadcasting and surveillance.
- 1.4T AI Computing Engine: Integrated NPU provides 1.4T@int8 / 5.6T@int4 AI power. Perfectly supports multi-channel synchronous structured analysis, real-time object detection, and intelligent recognition.
- Massive Storage & Networking: Equipped with Dual SATA interfaces for large-capacity HDD arrays and Dual Gigabit Ethernet ports for high-speed, stable data transmission.
- Ultra-Compact & Integrated: At only 65*30mm, it integrates DDR, RTC, and Audio peripherals. Powered by Magik AI integration, it significantly reduces system complexity and landing costs.
- BT-UHD Tech: Supports Ultra-HD Bluetooth encoding/decoding technology with a transmission bandwidth of up to 6.5Mbps.
Typical Applications
- Advanced Security Systems: High-performance NVRs requiring real-time multi-channel video analysis and detection.
- Industrial Control & IoT: Stable video processing and structured data analysis for smart factories and edge computing.
- Network Attached Storage (NAS): Powerful core board for smart media servers and low-power base stations.
- Smart Display & Digital Signage: Native 4K ultra-smooth playback for professional information displays and interactive screens.
Technical Specifications
| CPU Architecture | Ingenic A1 Dual-Core 1.4GHz |
| AI Compute | 1.4T@int8 / 5.6T@int4 |
| Video Encoding Capability | Support H.265/H.264 Encoding/Decoding |
| Video Capacity | Up to 4K@90fps Decoding |
| Video Output | HDMI Out（1280x720@60fps 1920x1080@60fps 3840x2160@60fps） |
| AI Computing Power | 1.4T @ int8 / 5.6T @ int4 |
| Networking | RJ45 10/100M |
| Storage Interface | Dual SATA Interfaces (Supports Large HDD) |
| Audio & Peripherals | Integrated DDR, RTC, Audio, BT-UHD Support |
| Operating Temp | 0°C to 70°C (32°F to 158°F) |

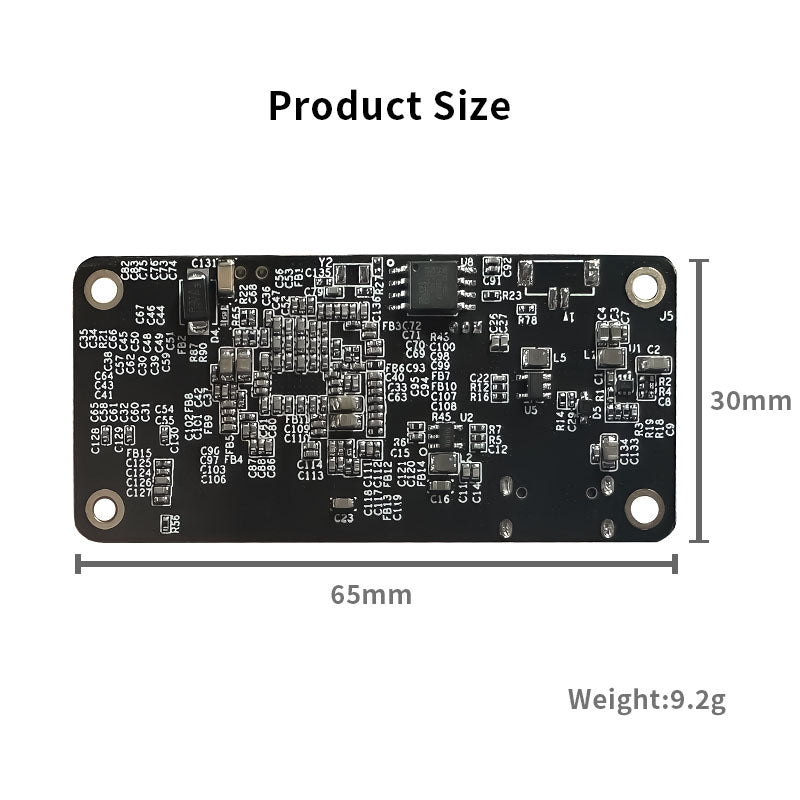

| Dimensions | 65mm x 30 mm | 2.6 × 1.18 in |
| Weight | 9.2 g | 0.32 oz |
