4K Network Video Decoder – Multi-Protocol IP Stream Decoder with HDMI 4K60 + VGA Dual Output

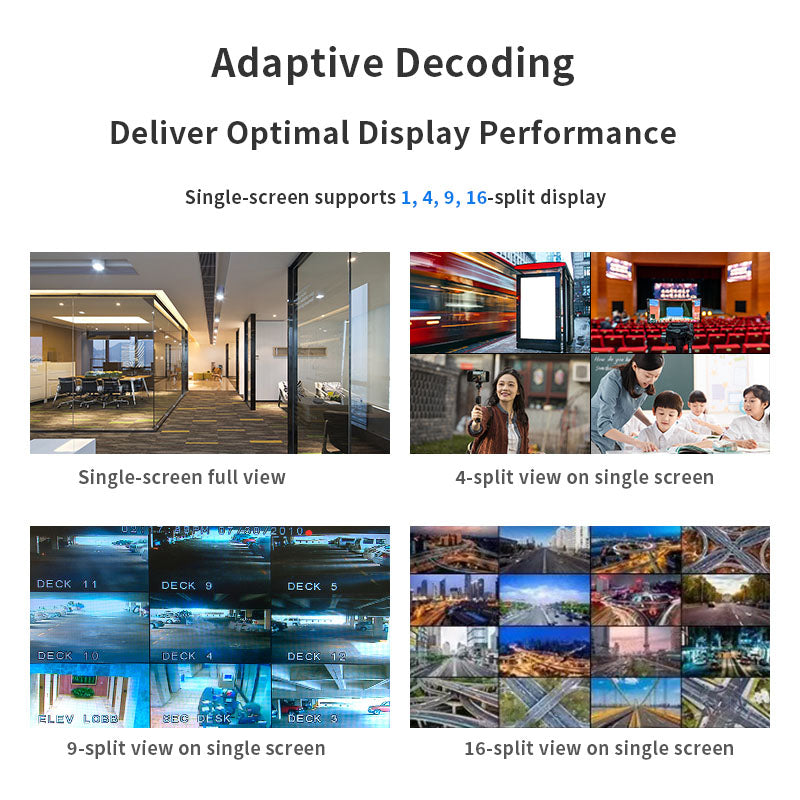

Professional-grade network video decoder powered by advanced H.264/H.265 hardware decoding engine, supporting a maximum decoding capability of single-channel 4K@60 or 4-channel 1080P@60 simultaneously — ideal for video wall, command center, and broadcast monitoring applications.
Supports 8 major streaming protocols: HTTP-FLV, RTSP, RTMP, UDP-TS, HLS, WS-FLV, WS-RAW, and WebRTC. No matter what stream format your camera or platform uses, this decoder handles it seamlessly. Works with all major IP cameras, NVR systems, streaming platforms, and private video servers worldwide.

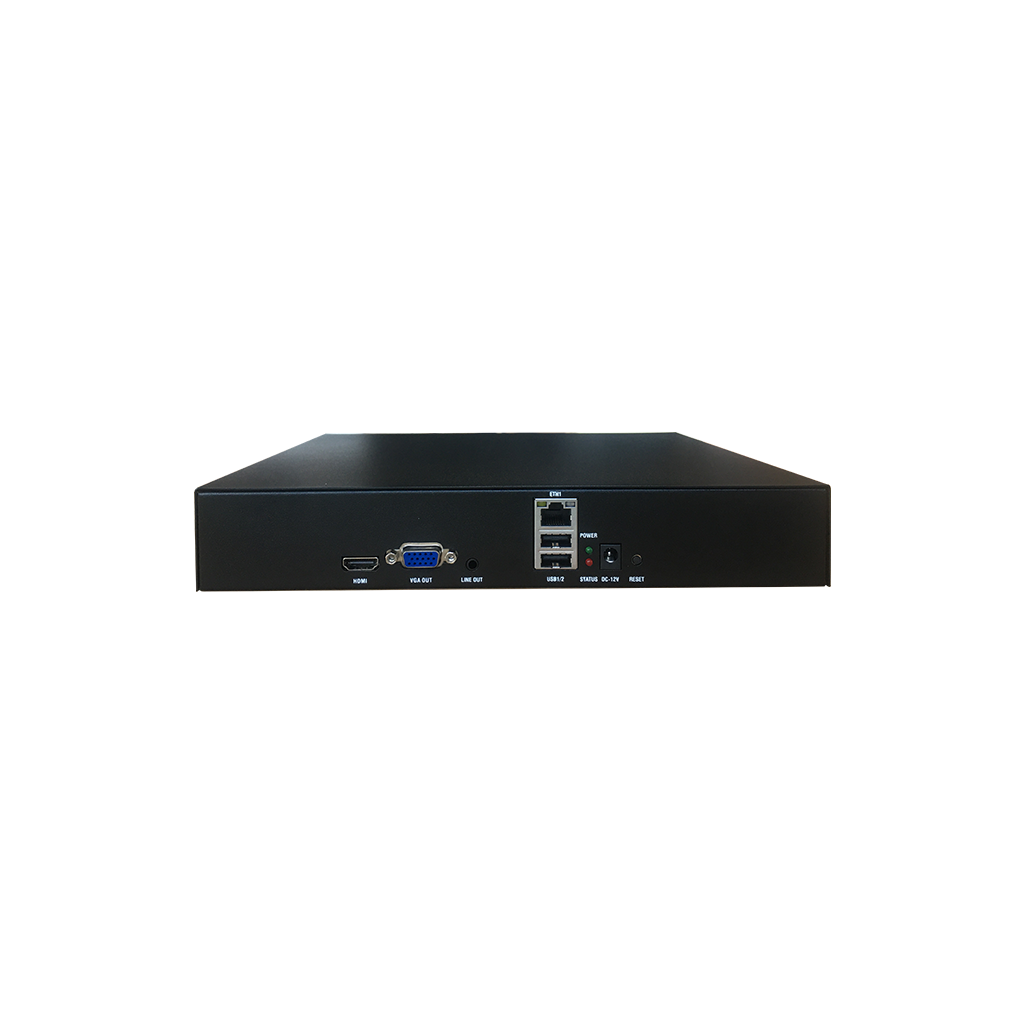

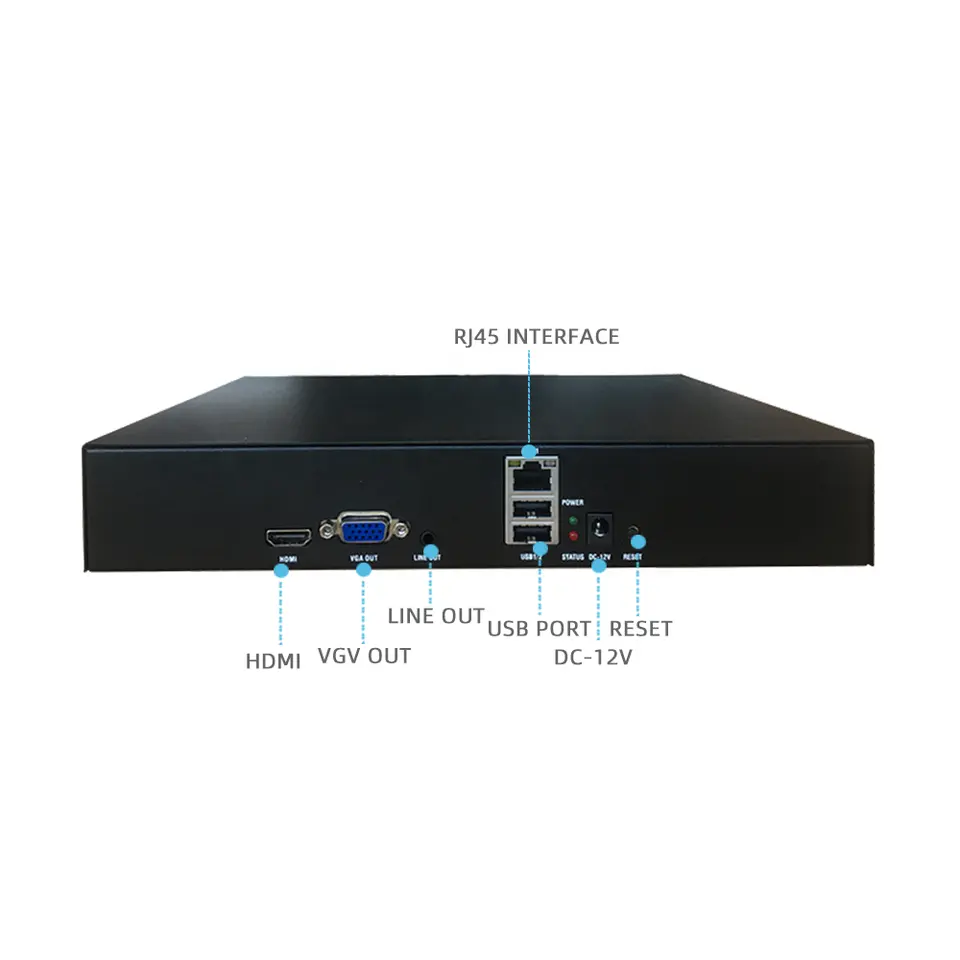

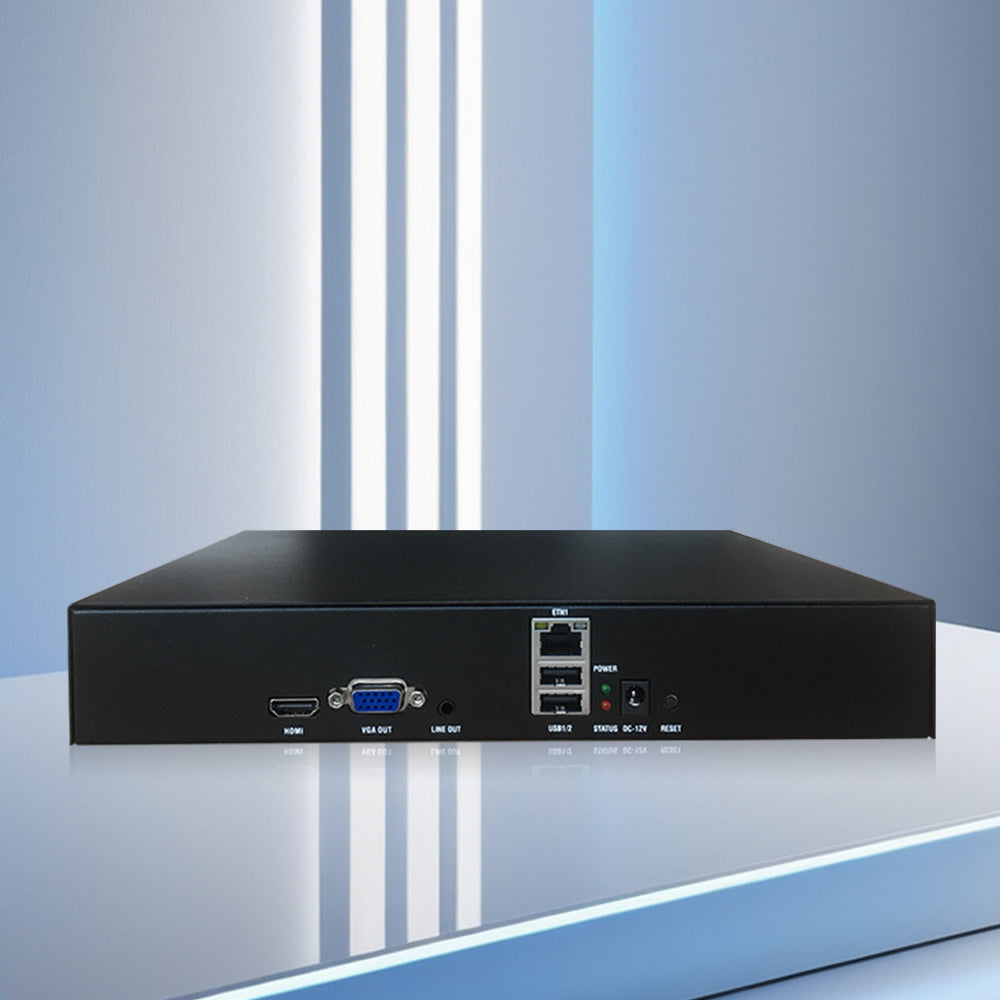

Features dual video outputs: HDMI (up to 4K@60) + VGA (1080P@60), allowing you to connect to modern 4K displays, video walls, and legacy VGA monitors at the same time. Audio is delivered via HDMI embedded output or 3.5mm analog audio jack, compatible with both AAC (streaming) and G.711 (traditional intercom) formats.

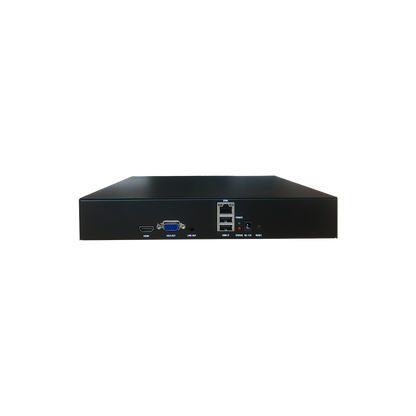

Designed for commercial environments with 0°C~70°C operating temperature range. Compact 1U rack-mount form factor (271×216×44mm, 1051g). DC12V power supply.

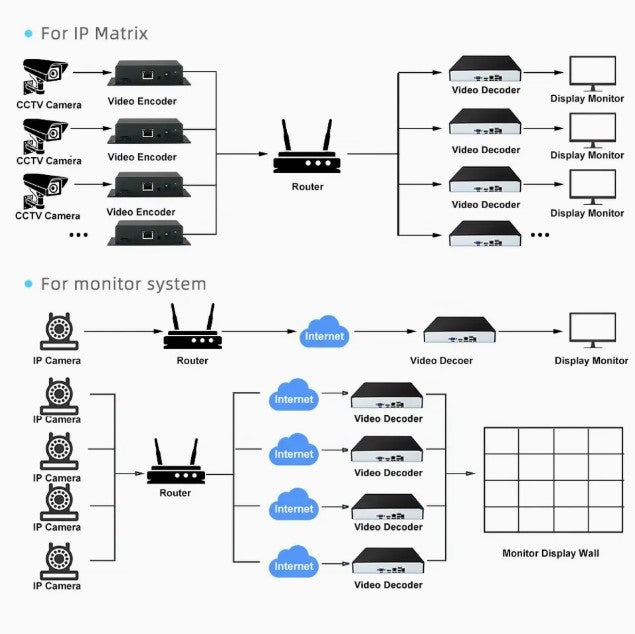

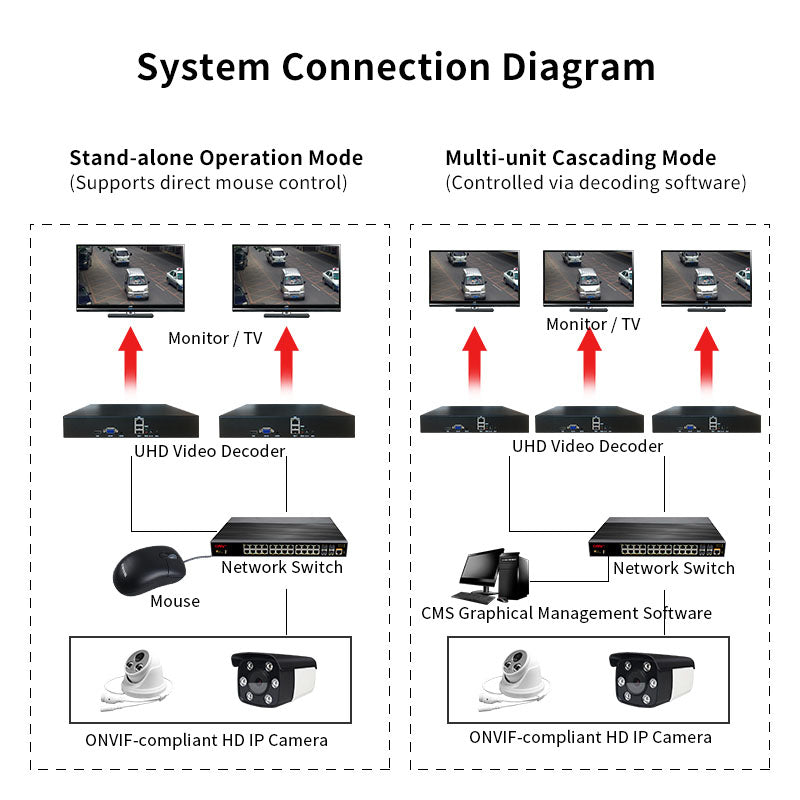

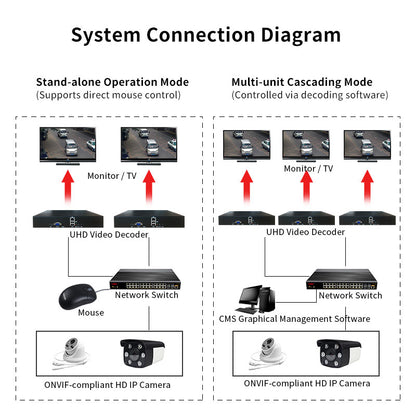

Applications: Video wall, surveillance monitoring center, command center, conference room, broadcast studio, digital signage, NVR integration, and live event streaming.
Product Parameters:
|
Model |
XSWDCR-FHD60P |
|
Network video input protocol |
HTTP-FLV/RTSP/RTMP/UDP-TS/HLS/WS-FLV/WS-RAW |
|
Network video decoding |
H.264/H.265 |
|
Hard disk decoding format |
AAC/G.711 |
|
Video output interface |
HDMI VGA |
|
Remote Upgrade |
Support |
|
Remote management |

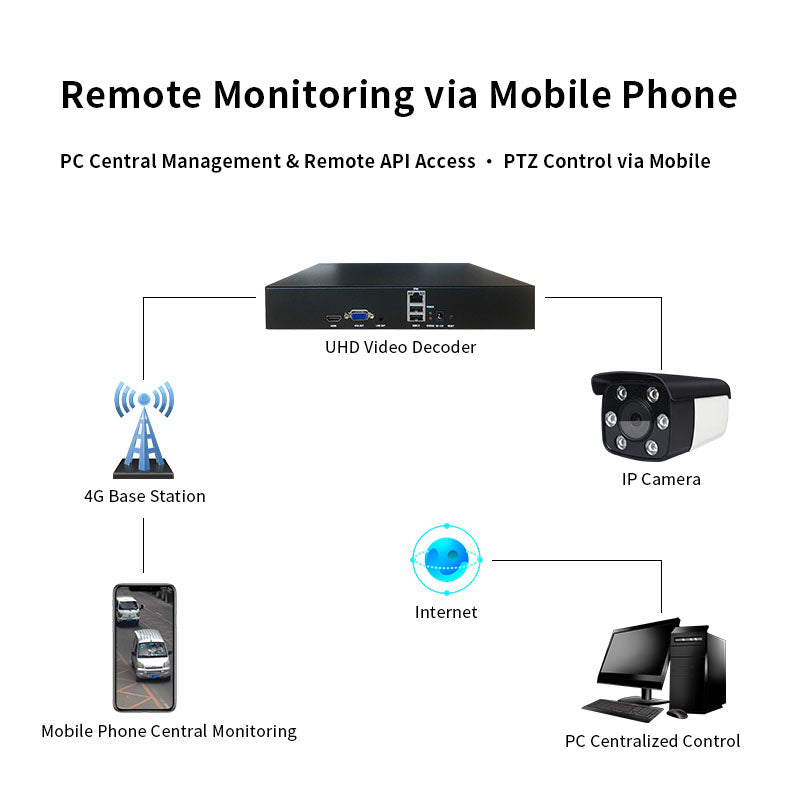

Support remote modification of device parameters platform.xstrive.com, register for use |
|
Working Power |
DC-12V |
|
Working temperature |
0～70℃ |
|
Dimesions |
271x216x44mm |
|
Weight |
1051g |
FAQ
|
question |
answer |
|---|---|
|
1、Can the screen loss alarm automatically？ |
There is no such function at present, it can be customized if necessary |
|
2、Can the motherboard system go into root？we need to install software in it |
No, you can write it down and we’ll put it in for you |
|
3、This is arm architecture? Can I use Android? |
Yes, you can’t swipe Android |
|
4、Decoding ability? |
The capacity of the decoder is 4k90 frames, 4k30 frames can decode 3 channels, decode 1080p30 frames can decode 9 channels, decode 720p30 frames can decode 16 channels |
