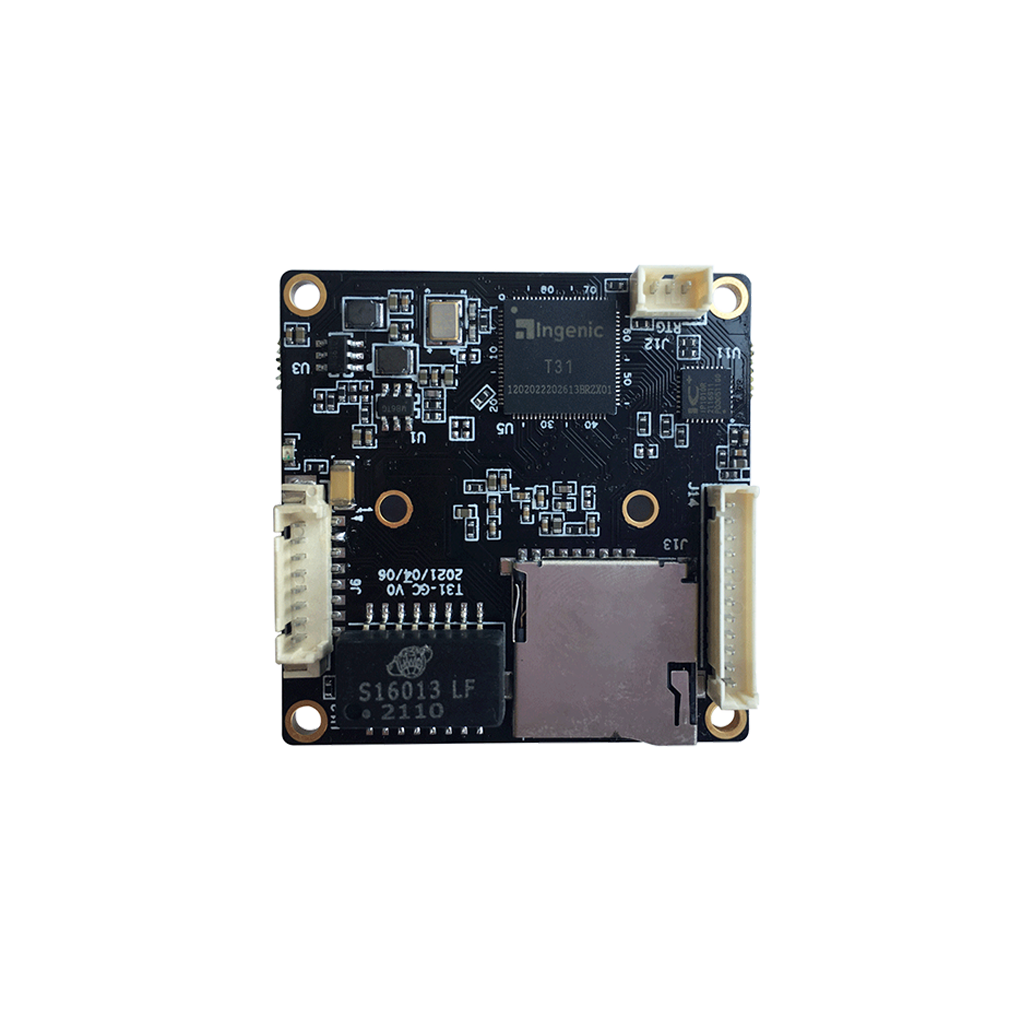

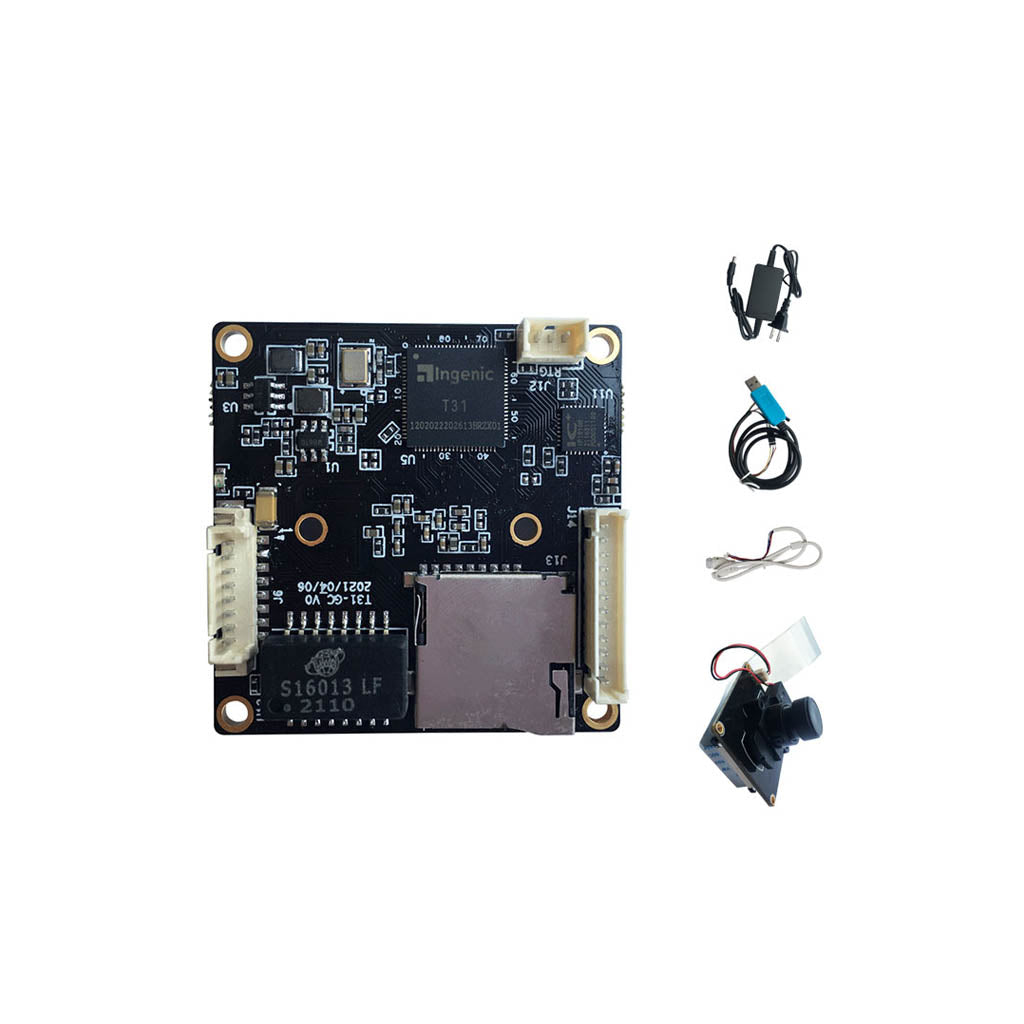

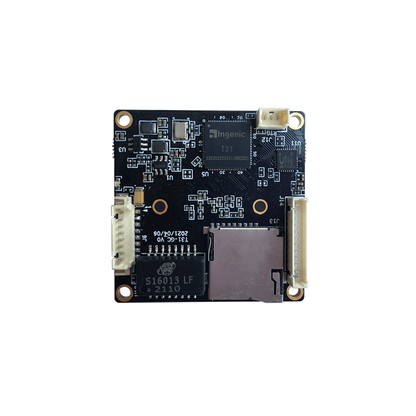

Ingenic T31ZX 4MP (2K) IP Camera Development Board | GC4653 Sensor | H.265 WebRTC, RTMP & GB28181 Support

Ingenic T31ZX 4MP (2K) IP Camera Development Board | GC4653 Sensor | H.265 WebRTC, RTMP & GB28181 Support

$112.00 USD
$198.00 USD $112.00 USD
Sale Sold out
Duties and taxes included. Shipping calculated at checkout.
Request a Bulk Quote / B2B Solution

2K Ultra-HD Clarity Meets Professional Streaming

Upgrade your vision project with the Ingenic T31ZX + GC4653 development module. Delivering a crisp 4-Megapixel (2560x1440) resolution at 25FPS, this board is engineered for developers who need high-definition detail combined with low-power efficiency. Whether you are building an industrial monitor or a smart city terminal, the GC4653 Starvis-level sensitivity ensures vivid images even in low light (0.01 lux).

Universal Integration & Low Latency

The standout feature is its massive protocol stack. It natively supports WebRTC for zero-latency web browser viewing, RTMP for direct YouTube/Facebook streaming, and GB/T28181 for high-end professional security projects.

Core Highlights:

2K Quad HD:
 2560x1440 resolution provides 2x the detail of standard 1080P.

Smart H.265 Compression:
Save up to 50% on bandwidth and storage while maintaining ultra-clear video.

Massive Storage:
Supports up to 512GB MicroSD cards for long-term local recording and remote playback.

Reliable Audio:
Built-in support for both Audio Input and Output for full two-way communication.

Industrial Reliability:
Wide operating temperature (-10℃ to 50℃) and low 3W max power consumption.

Smaller: 38X38mm

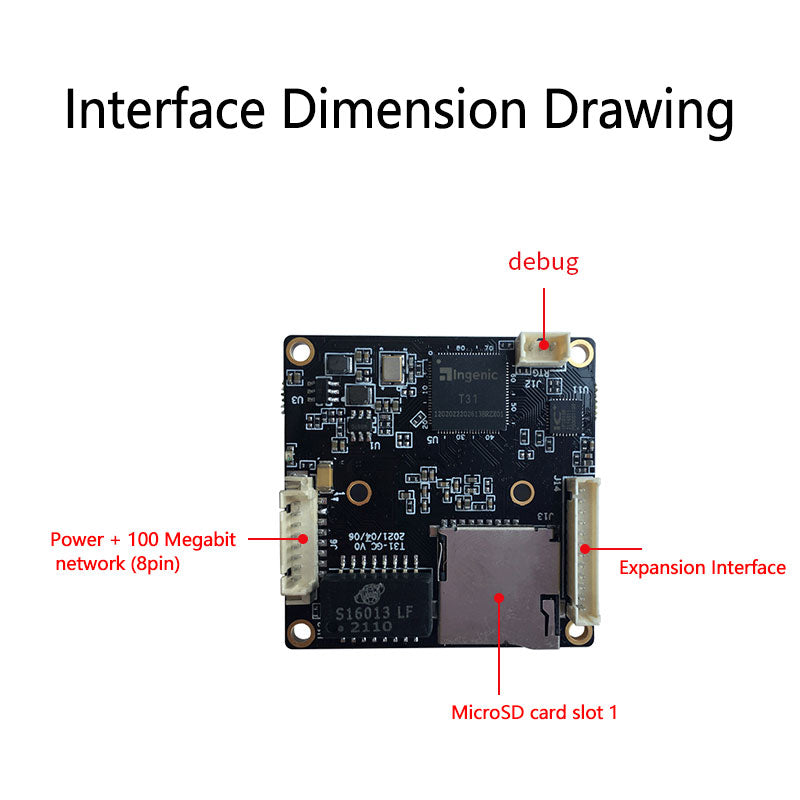

4MP IP Camera module interface





Product Parameters:

Name model IngenicT31ZX
Sensor GalaxyCore GC4653
Lens 4mm (Optional 2.8mm,6mm,8mm and other lenses, suitable for different installation scenarios
Sensor type GC4653 1/2.7’’ 4MP sensor
Minimum illumination 0.01lux/F1.2(colors) 0.01lux/F1.2(black)
Shutter 1/3 second to 1/100.000 second
Day-night conversion Support hard light sensitive soft light sensitive
Video compression standard H.264/H.265
Compress the output bitrate 128Kbps~8000Kbps
Number of streams dual-stream
Maximum image size 2560x1440
Maximum frame rate 25FPS
Image setting Brightness, contrast, saturation, exposure, upside down, left and right mirror
audio output support
Audio input support
access protocol HTTP-FLV/RTSP/WEBRTC/RTMP/WS-FLV/WS-RAW/ONVIF GB/T28181
Networking protocol Support for TCP/IP, DHCP, DNS, NTP, RTSP, RTMP live
Wired network 1 RJ45 10M/100M Ethernet port
Local client support
Network access support
Local upgrade support
OSD superposition Supports more than 2 user-defined regions Time display
TF Supports up to 512GBSD card storage
Video download Supports local and remote video download
Replay Supports remote video playback
Operating temperature and humidity The humidity ranges from -10 ° C to 50 ° C and is less than 95%
TDP 3W MAX
