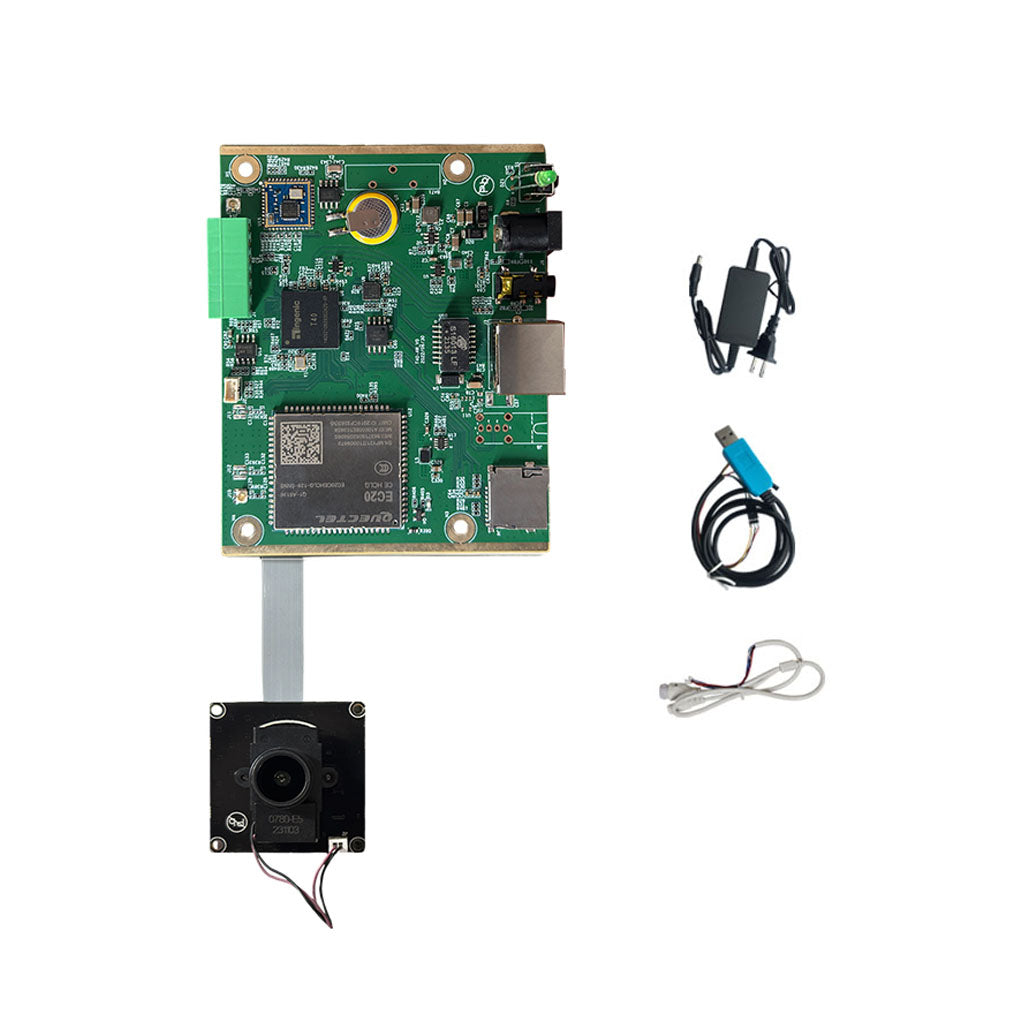

Ingenic T40XP 4MP (2K) AI Camera Board | 8T NPU Computing Power | GC4653 Sensor | YOLOv5 & LPR Optimized | 500ms Fast Boot
Ingenic T40XP 4MP (2K) AI Camera Board | 8T NPU Computing Power | GC4653 Sensor | YOLOv5 & LPR Optimized | 500ms Fast Boot
Couldn't load pickup availability
2K Ultra-HD Visuals Powered by 8T Edge AI
Unleash high-resolution intelligence with the Ingenic T40XP + GC4653 AI network module. By combining a crisp 4-Megapixel (2K) sensor with a massive 8T (int2) AI NPU, this board is designed for high-end applications that demand both visual clarity and heavy-duty algorithm processing. It’s the ideal engine for smart traffic, industrial automation, and advanced security analytics.
Optimized for Precision Recognition
Built-in hardware acceleration for YOLOv5 allows this module to handle complex object detection with ease. Whether it’s License Plate Recognition (LPR) or human behavior analysis, the 4MP resolution provides twice the pixels of standard 1080P, ensuring higher accuracy in recognition tasks. Plus, with a customizable 500ms fast boot, you’ll capture critical moments without the typical system lag.
Core Highlights:
4MP 2K Resolution:
High-definition GC4653 sensor for superior image detail and evidence-grade footage.
Extreme AI Performance:
8T int2 computing power effortlessly runs advanced deep learning models on the edge.
Instant-On Technology:
Sub-3s standard boot, customizable down to 500ms for high-speed response.
Expandable Connectivity:
Supports 4G LTE integration and USB storage for remote or off-grid deployments.
Industrial Longevity:
Engineered for 5+ years of 24/7 continuous operation in harsh environments (-20°C to 75°C).
Product Parameters:
|
Product Name
|
Camera Module
|
|
Keywords
|
Communication Module
|
|
CPU
|
T40Xp
|
|
Sensor
|
GC4653x1
|
|
Memory
|
256MB/SPI NOR 128Mbit
|
|
AI
|
8T Int2 Computing Power
|
|
Algorithm
|
Yolov5 License Plate Recognition
|
|
Startup Time
|
<3 Seconds, Customizable 500Ms
|
|
Video Encoding
|
H264/H265
|
|
Audio Input
|
Mic
|
|
USB
|
4G Module, U Disk
|
|
Network
|
100Mbit Ethernet
|
|

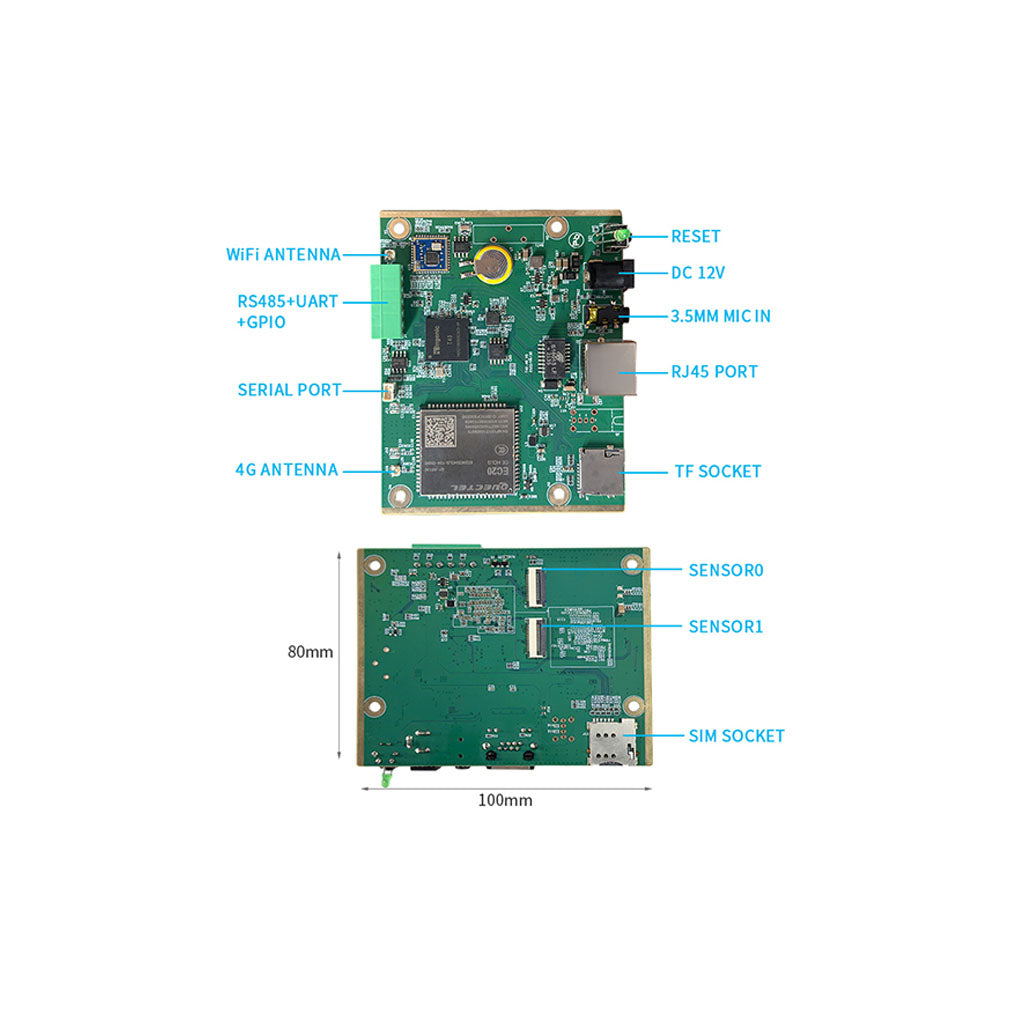

Size
|
80X100 mm
|
