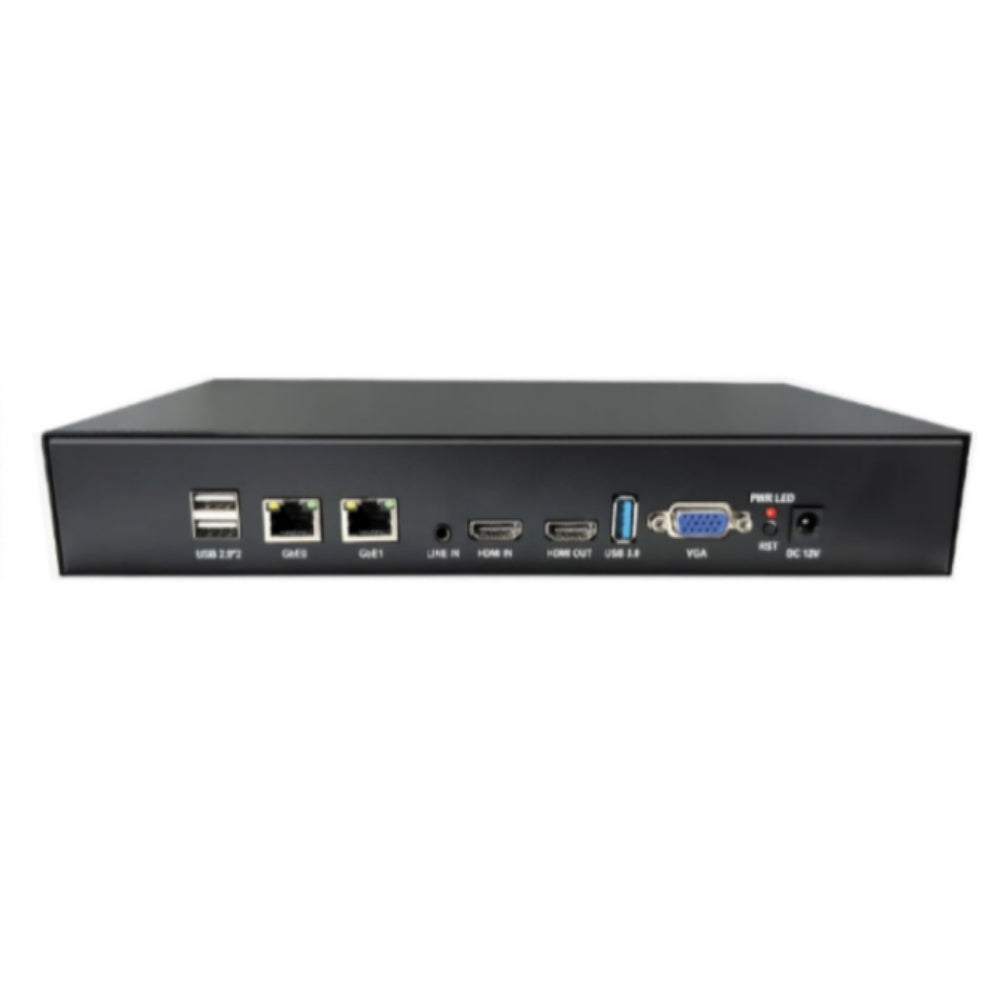

XSTRIVE 4K60 HDMI Video Audio Encoder H.265 H.264 Mini RTMP RTSP webRTC IP Video Encoder IPTV
XSTRIVE 4K60 HDMI Video Audio Encoder H.265 H.264 Mini RTMP RTSP webRTC IP Video Encoder IPTV
Couldn't load pickup availability
Features:

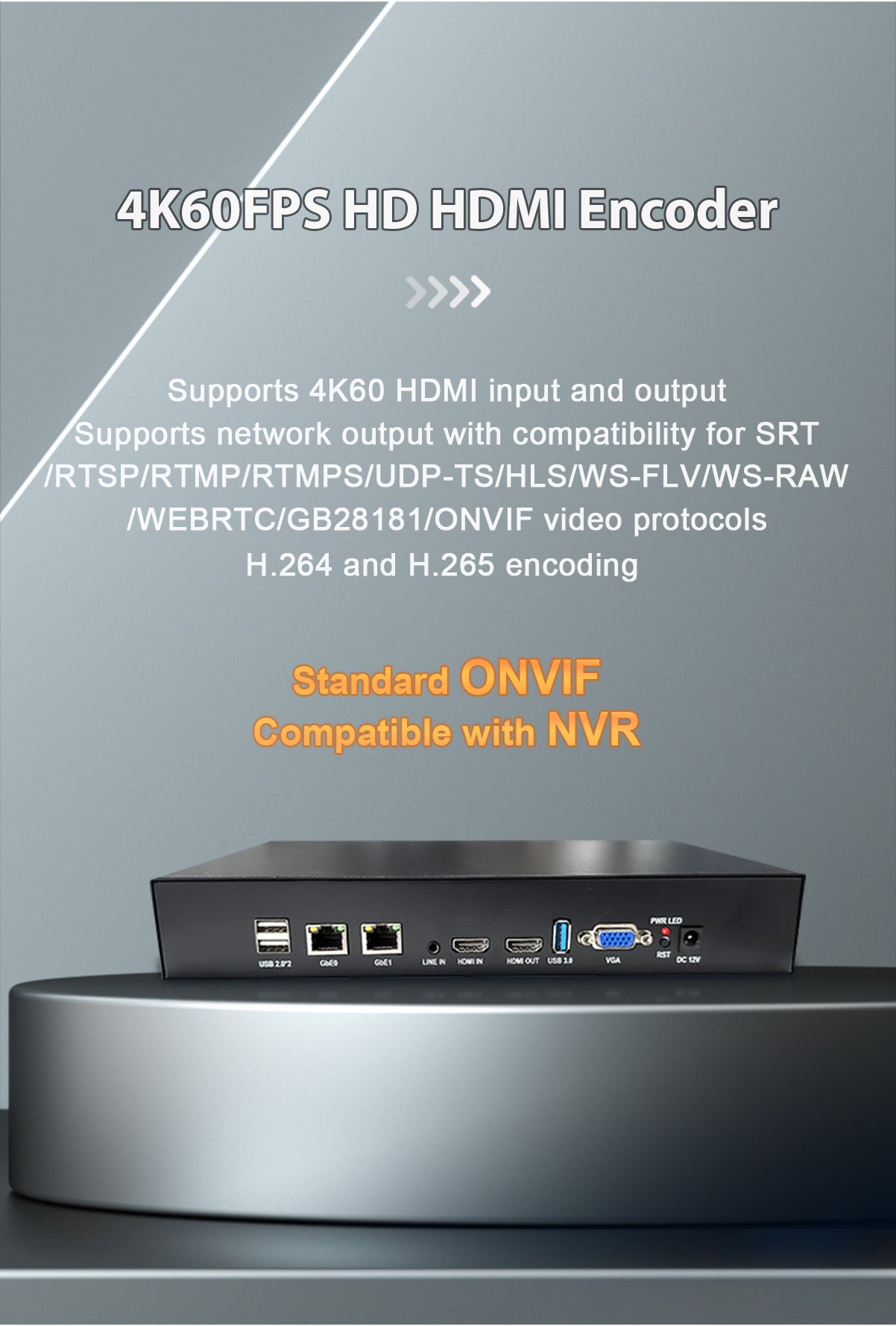

✅4K60 ultra-high-definition HDMI encoder with ultra-clear picture quality and real-time live broadcast
✅Support monitoring NVR recording. Through the onvif protocol, the NVR can find the encoder IP and add it to the NVR to record the video. It also supports video playback

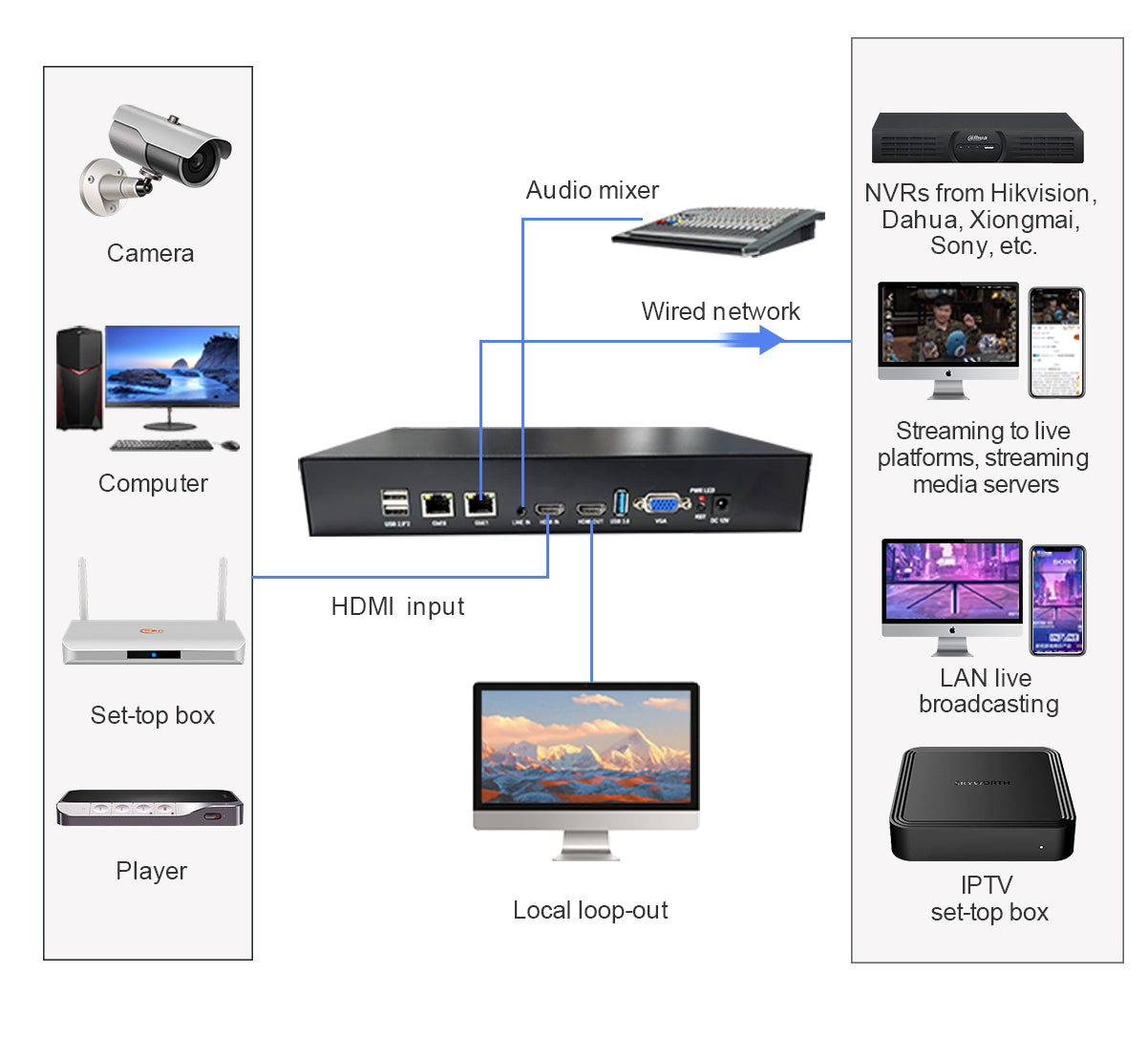

✅Supports multi-person access in the LAN, supports RTMP/RTSP/HTTP-FLVHLS/UDP-TS/SRT protocols for direct playback in the LAN
✅Web H5 and mini-programs play without plug-ins, no need to install plug-ins, support LAN Internet browser playback, mini-program playback, etc.
✅Portable remote operation, web page visual management, mobile mini-program remote management
✅Support OSD graphic settings, can add time, pictures, logo text, scrolling text in multiple areas of the video, and can set color, background and transparency
Product Parameters:
|
Model |
XSWEDR-RV-GDHDMI |
|
Video input |
1 channel 4k@60 HDMI input interface |
|
Video output |
1 channel 4k@60 HDMI loop out interface |
|
Audio Input |
1 channel stereo analog audio input interface / HDMI Embedded Audio |
|
Video encoding capability |
3840x2160@60fps/1920x1080p@60fps |
|
Network Interface |
10/100/1000M Ethernet adaptive) |
|
Network video output protocol |
SRT/RTSP/RTMP/RTMPS/UDP-TS/HLS/WS-FLV/WS-RAW/WEBRTC/GB28181 client/ONVIF |
|
Output video encoding format |
H.264/H.265 |
|
Output audio encoding format |
AAC |
|
Video encoding rate |
35Kbps~80Mbps |
|
Remote Upgrade |
Support |
|
Remote management |
Support remote modification of device parametersplatform.xstrive.comregister for use |
|
Product feature |
All components are produced nationwide |
|
Working Power |
DC 12V |
|
Working temperature |
0～75℃ |
|

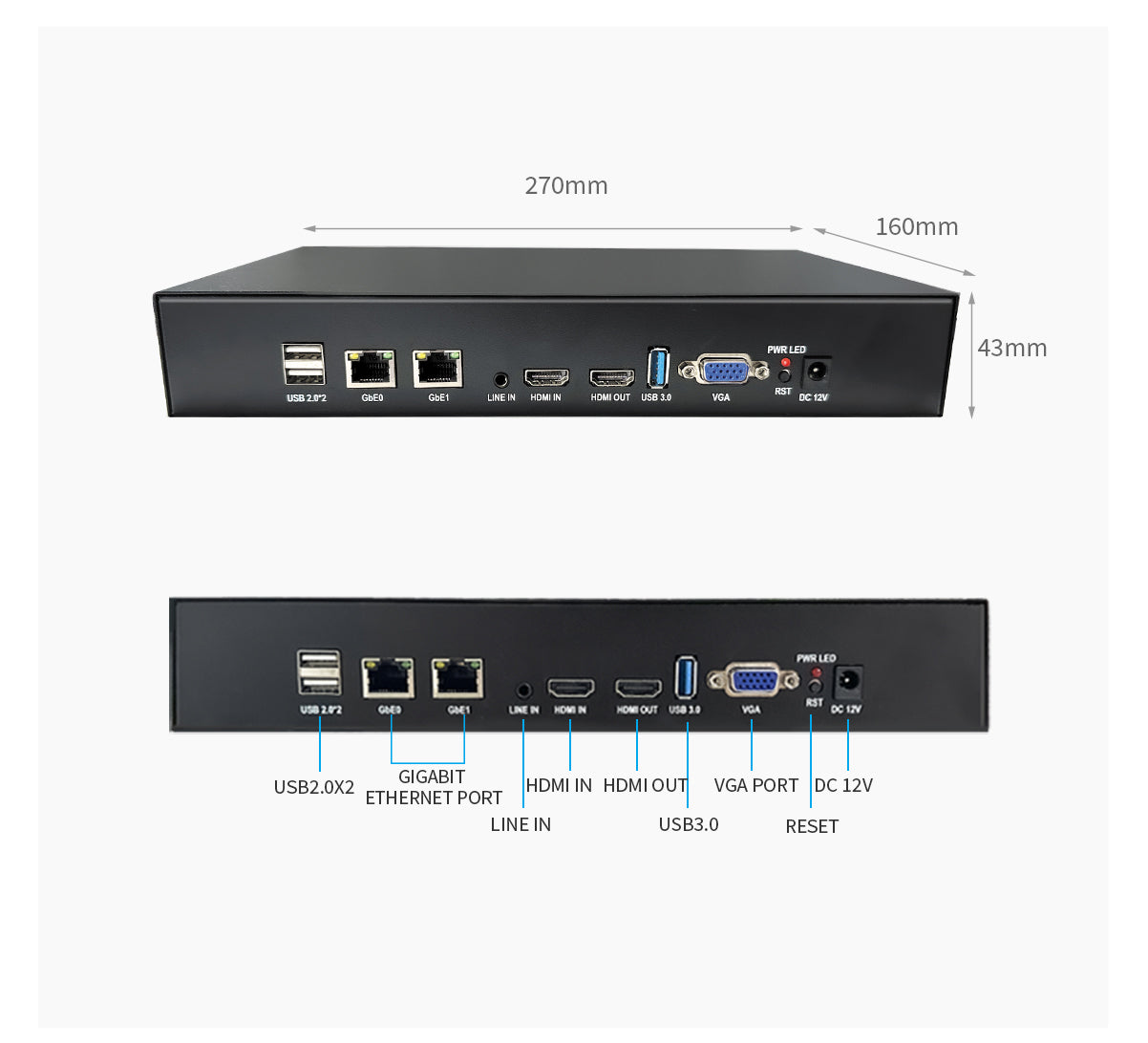

Dimesions |
270x160x43mm |
|
Weight |
950g |
FAQs
Does the product with a warranty?
Yes, absolutely. We stand behind our product quality. Every purchase comes with a 1-Year Risk-Free Warranty and lifetime technical support. If the hardware malfunctions due to non-human factors within 1 year, we will provide a replacement or free repair.
Where do you ship from and how long is the delivery time?
Shipped directly from our factory in Wuhan. We partner with top-tier carriers (USPS, FedEx, and UPS) to ensure your asset-protection gear arrives safely. Orders are processed within 1-2 business days. Shipping to the United States usually takes 5-9 business days, with end-to-end tracking provided via email.
Will I be charged import duties or hidden fees at checkout?
No. The price you see at checkout is final. all customs duties and import taxes are pre-paid by us. There are absolutely no hidden fees upon delivery.
