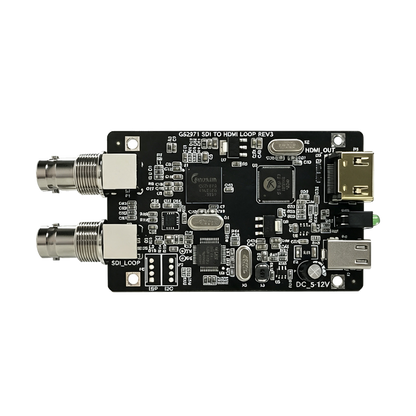

Broadcast SDI to HDMI Converter Board with SDI Loopout
Broadcast SDI to HDMI Converter Board with SDI Loopout
Не удалось загрузить сведения о доступности самовывоза
Broadcast-Grade Embedded SDI to HDMI Converter Board with SDI Passthrough Loop-out

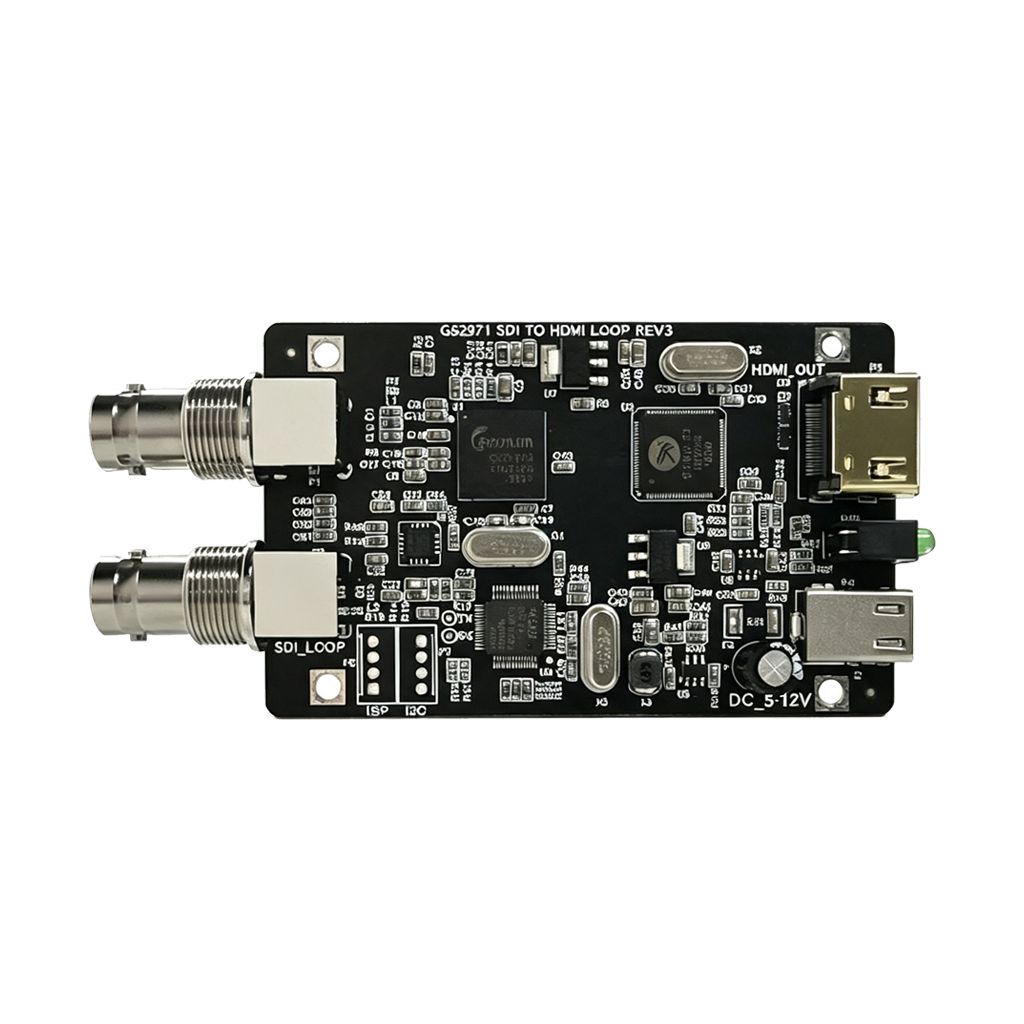

The XSWEDR-DSDI2HDMI is a professional, broadcast-grade SDI-to-HDMI video converter PCB module engineered for Pro AV integrators, broadcast engineers, and hardware developers. Designed to seamlessly bridge the gap between broadcast SDI infrastructure and HDMI displays or streaming capture cards, this compact module hardware-converts SDI signals (including embedded audio) into crisp 1080P@60 / 720P@60 HDMI output with ultra-low latency.
Equipped with an equalized SDI loop-out interface, it allows users to output HDMI video to standard monitors or encoders while simultaneously passing through the original SDI feed to broadcast-grade SDI equipment. Featuring a space-saving 100x50mm footprint and weighing only 49g, it is built with mounting holes for effortless embedding inside custom chassis, mobile rigs, or camera setups.
Key Features & Highlights
- Hardware Broadcast SDI to HDMI Conversion: Converts SDI video and SDI embedded audio into full HD HDMI signal output (supports up to 1080P@60fps and 720P@60fps).
- SDI Equalized Passthrough Loop-out: Includes 1x SDI Loop-out port to feed local SDI monitors, switchers, or secondary recorders without signal degradation.
- Flexible Dual Power Options: Powered via a standard DC power port (DC 5V-12V compatible) or via a convenient USB Type-C interface.
- Embedded Audio De-Embedding: Seamlessly carries and decodes SDI embedded audio over to the HDMI output interface.
- Ultra-Compact OEM Bare Board Design: Measuring 10x5cm and weighing just 49g, complete with standard PCB mounting holes for custom enclosure integration.
- High Thermal & Industrial Durability: Solid PCB construction designed for continuous 24/7 operation across 0°C to 70°C environments.
Ideal Applications & Setup Ideas
- Broadcast Camera Integration: Connect SDI cameras to HDMI-only live streaming encoders, capture cards, or consumer monitors.
- Pro AV & Medical Video Rigs: Convert medical SDI endoscopy feeds or studio cameras to low-cost HDMI field displays.
- Custom OEM Hardware Building: Embed into streaming boxes, mobile broadcast cases, or industrial equipment requiring internal SDI-to-HDMI bridging.
Product Parameters:
| Model | XSWEDR-DSDI2HDMI |
| Function | SDI to HDMI Video Converter Module with SDI Loop-out |

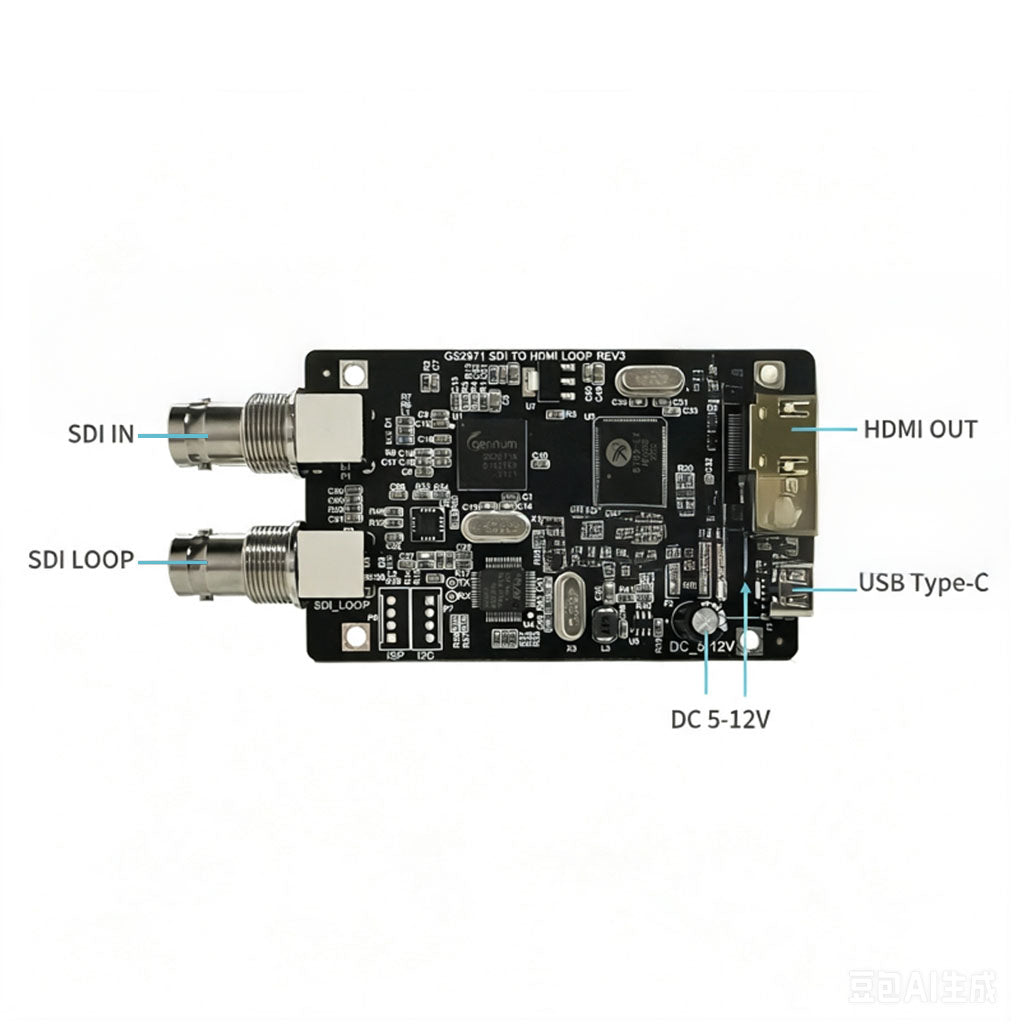

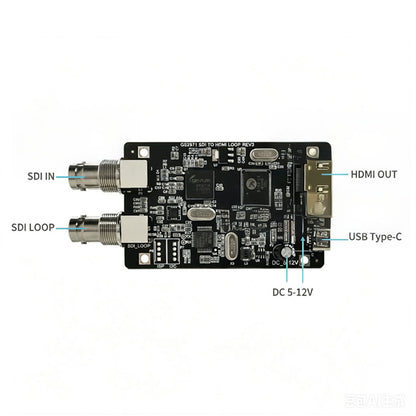

| Video Input | 1x BNC SDI Input Interface |
| Audio Input | SDI Embedded Audio |
| Video Output | 1x HDMI Output (1080P @ 60fps / 720P @ 60fps), 1x BNC SDI Loop-out |
| Power Supply | DC 5V - 12V / USB Type-C Port |
| Operating Temperature | 0°C ~ 70°C |
| PCB Dimensions & Weight | 100 x 50 mm (10 x 5 cm) | Weight: 49g (1.72 oz) |
Package Contents
- 1x XSWEDR-DSDI2HDMI SDI to HDMI Converter Board
- 1x Power Cable
