Smart Edge-AI Vision Camera Module with Integrated 1 TOPS NPU

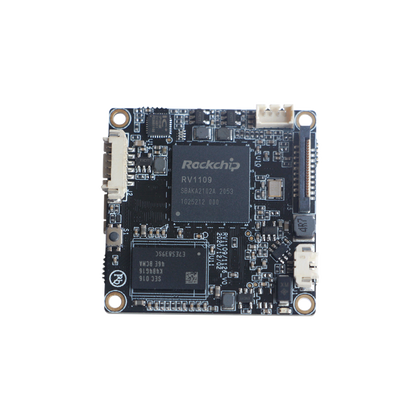

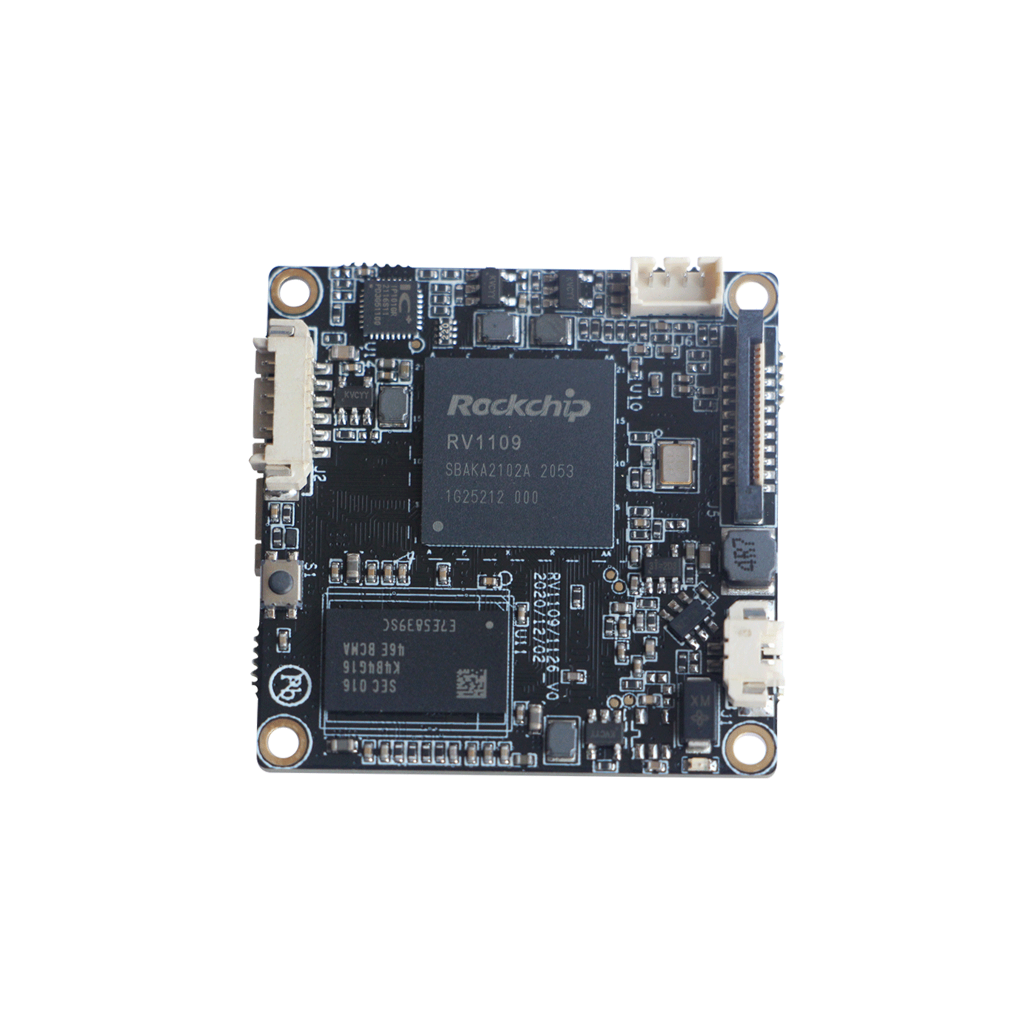

The XSWTVR-1CERV1109EXTSNS/EX is an advanced, industrial-grade AI smart vision camera module designed for AIoT developers, security system integrators, and robotics engineers. Powered by the high-performance Rockchip RV1109 dual-core processor, this compact camera board features a built-in 1 TOPS Neural Processing Unit (NPU) capable of running complex edge-AI Intelligent Video Surveillance (IVS) algorithms directly on the device.
Without relying on costly cloud servers, the module supports real-time face recognition, vehicle/motorcycle identification, pedestrian detection, and line-crossing analytics. Offered with two premium Sony CMOS sensors—the low-light starvis Sony IMX307 or the ultra-high-definition 5MP Sony IMX335 (2592x1944 @ 30fps)—it ensures exceptional imaging clarity across day, night, and challenging light environments.
Equipped with 1GB RAM and 8GB eMMC onboard flash storage, the module easily stores local database features (such as face whitelist/blacklist) and runs embedded Linux algorithms smoothly. Built for continuous 24/7 industrial deployment, it is an ideal core engine for next-generation smart vision hardware.
Key Features & Highlights
- Rockchip RV1109 Processor + 1 TOPS NPU: Hardware-accelerated Neural Processing Unit enables low-latency edge AI analytics for computer vision applications.
- Onboard Intelligent Video Analytics (IVS): Built-in algorithm support for face recognition, vehicle/motorcycle classification, pedestrian detection, and perimeter monitoring.
-
Sony Premium CMOS Sensor Options:
- Sony IMX307 Sensor: Exceptional low-illumination performance for night-vision surveillance.
- Sony IMX335 Sensor: Ultra-clear 5MP resolution up to 2592x1944 @ 30fps.
- Robust Storage & Memory Configuration: Onboard 1GB RAM and 8GB eMMC flash memory for edge algorithm storage and local database processing.
- High-Efficiency H.265/H.264 Encoding: Dual video codecs deliver pristine video streams with minimized bandwidth consumption.
- Full Audio I/O & Networking Capabilities: Supports audio input/output with full sampling rates (8K-48K), 10/100M Ethernet, and USB 2.0 interface.
- 24/7 Industrial Reliability: Engineered for over 2+ years of continuous operating lifespan across 0°C to 70°C environments.
Ideal Applications & Setup Ideas
- Smart Access Control & Attendance Kiosks: Embed into smart turnstiles or door entry systems for instant offline face recognition.
- Smart Transportation & Parking Management: Deploy in parking gates and traffic monitoring posts for real-time vehicle and license plate recognition.
- Robotics & Drone Machine Vision: Lightweight AI vision core for autonomous mobile robots (AMR) and inspection drones.
- Industrial Edge Security Cameras: High-definition smart security cameras with built-in perimeter intrusion detection.

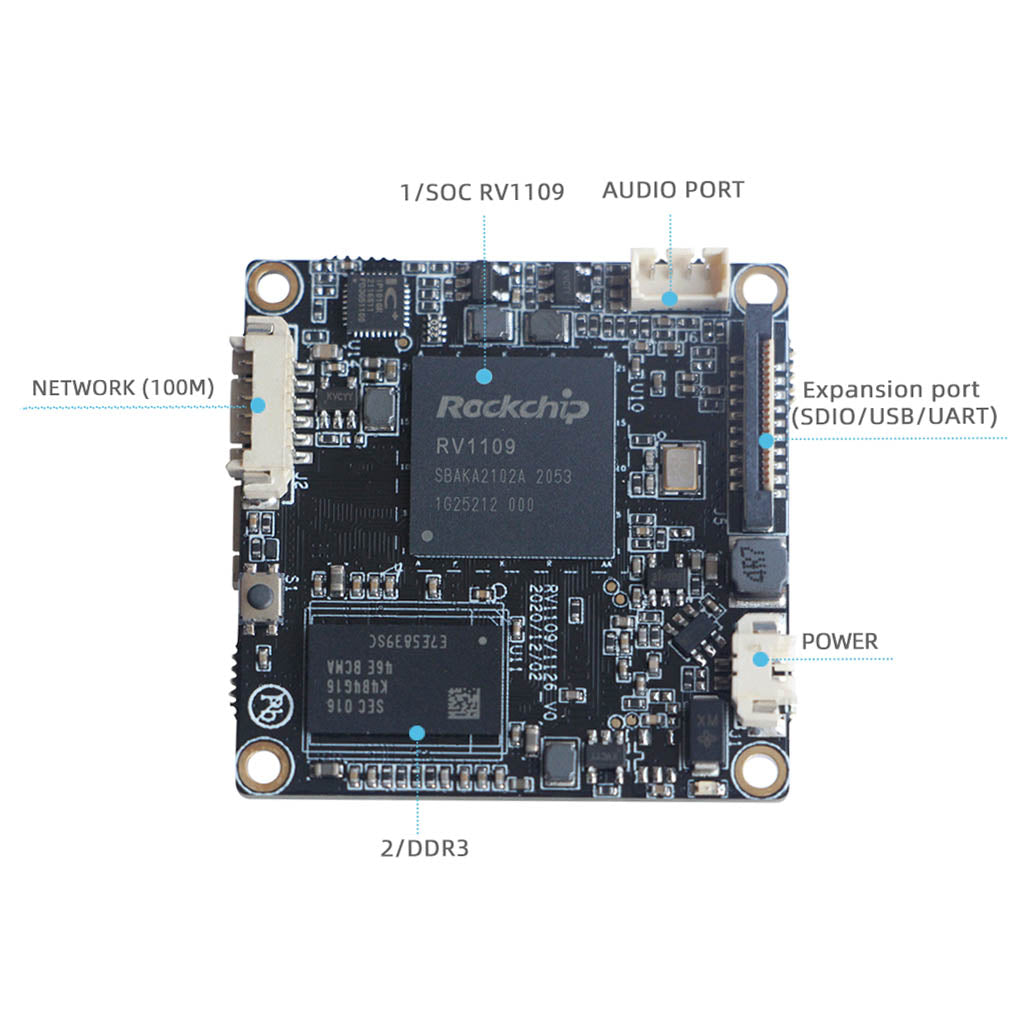

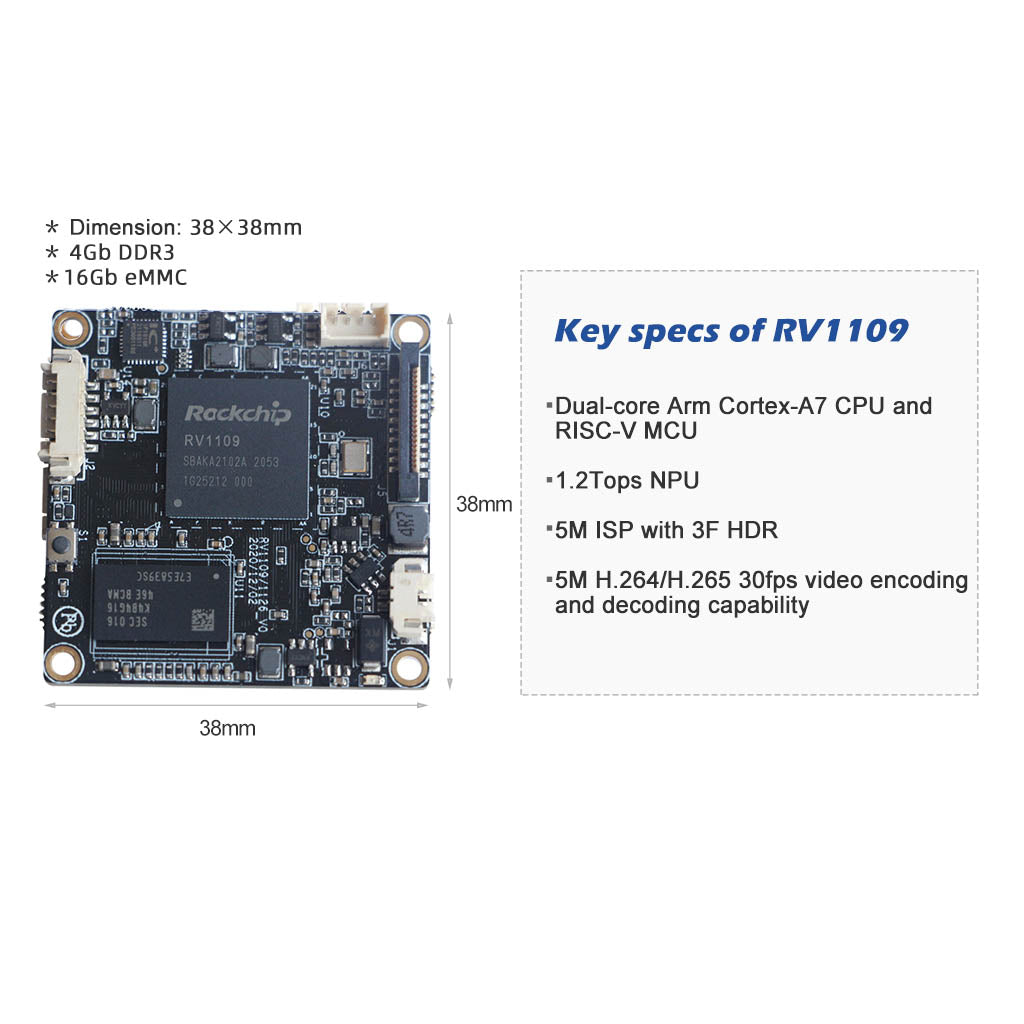

Product Parameters:
| Model | XSWTVR-1CERV1109EXTSNS/EX |
| Processor (CPU) | Rockchip RV1109 Dual-Core Processor |
| AI Computing Power (NPU) | 1 TOPS Integrated NPU (Supports IVS: Face, Vehicle & Pedestrian Recognition) |
| Image Sensor Options | Sony IMX307 (Low-Illumination) / Sony IMX335 (5MP CMOS) |
| Video Encoding | H.265 / H.264 Encoding & Decoding |
| Max Resolution & Frame Rate | Up to 2592 x 1944 @ 30fps (5MP) |
| System Memory & Storage | 1GB DDR RAM | 8GB eMMC Flash |
| Audio Capabilities | Sampling Rates: 8K / 12K / 16K / 24K / 32K / 44.1K / 48K (Supports Audio In & Out) |
| USB Interface | 1x USB 2.0 |
| Network Interface | RJ45 10/100M Adaptive Ethernet |
| Operating Power Supply | DC 12V |
| Operating Temperature | 0°C ~ 70°C |
| Operating Lifespan | 24/7 Continuous Operation (> 2 Years Lifespan) |

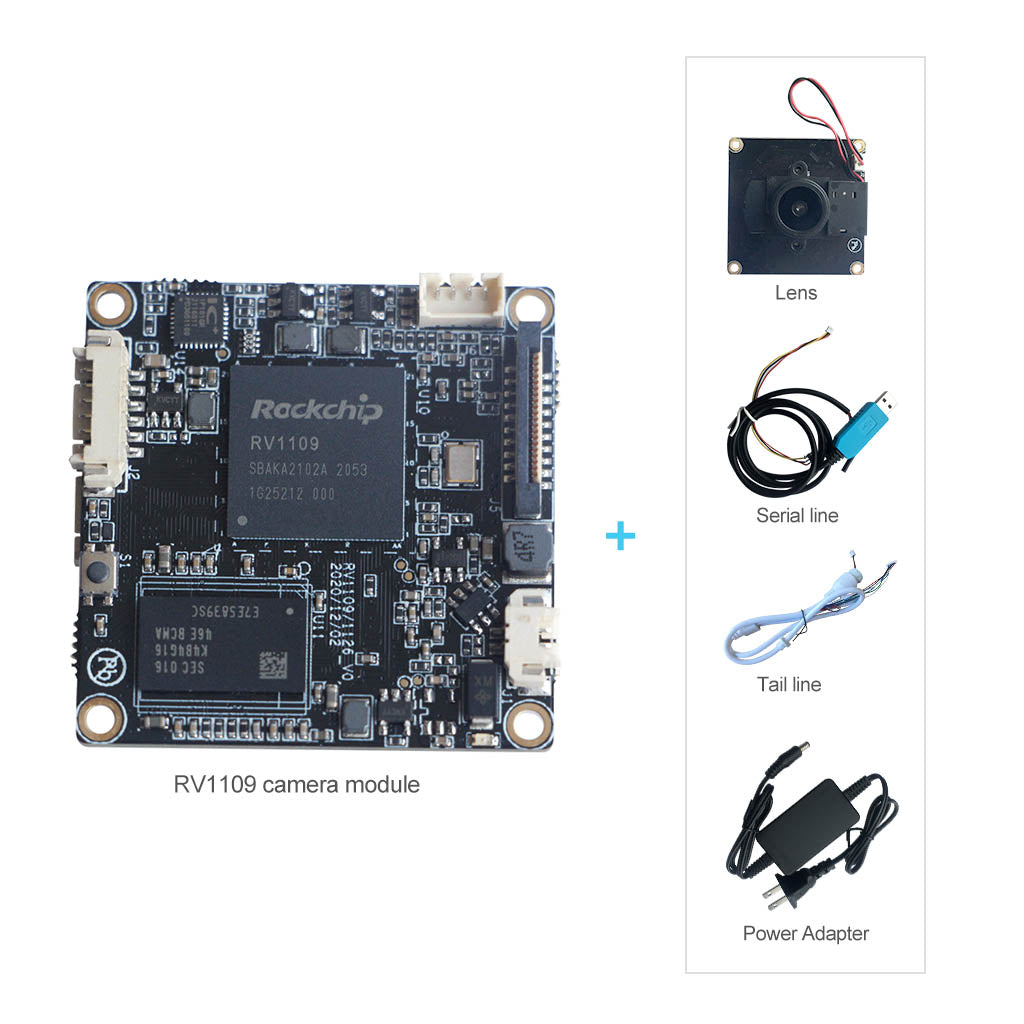

Package Contents
- 1x XSWTVR-1CERV1109EXTSNS/EX RV1109 AI Camera Module
- 1x Lens
- 1x Serial line
- 1x Tail line
- 1x Power Cable
